Myoglobin adsorption and saturation kinetics of the cytokine adsorber Cytosorb® in patients with severe rhabdomyolysis: a prospective trial

Annals of Intensive Care volume 14, Article number: 96 (2024) Cite this article

Abstract

Background

Rhabdomyolysis is a serious condition that can lead to acute kidney injury with the need of renal replacement therapy (RRT). The cytokine adsorber Cytosorb® (CS) can be used for extracorporeal myoglobin elimination in patients with rhabdomyolysis. However, data on adsorption capacity and saturation kinetics are still missing.

Methods

The prospective Cyto-SOLVE study (NCT04913298) included 20 intensive care unit patients with severe rhabdomyolysis (plasma myoglobin > 5000 ng/ml), RRT due to acute kidney injury and the use of CS for myoglobin elimination. Myoglobin and creatine kinase (CK) were measured in the patient´s blood and pre- and post-CS at defined time points (ten minutes, one, three, six, and twelve hours after initiation). We calculated Relative Change (RC, %) with: \(1 - \left( {concentration(pre - post)\,/\,concentration\left( {pre} \right)} \right)*100\). Myoglobin plasma clearances (ml/min) were calculated with: \(\left( {bloodflow*\left( {1 - hematocrit} \right)} \right)*\left( {concentration\left( {pre - post} \right)\,/\,concentration\left( {pre} \right)} \right)\)

Results

There was a significant decrease of the myoglobin plasma concentration six hours after installation of CS (median (IQR) 56,894 ng/ml (11,544; 102,737 ng/ml) vs. 40,125 ng/ml (7879; 75,638 ng/ml) (p < 0.001). No significant change was observed after twelve hours. Significant extracorporeal adsorption of myoglobin can be seen at all time points (p < 0.05) (ten minutes, one, three, six, and twelve hours after initiation). The median (IQR) RC of myoglobin at the above-mentioned time points was − 79.2% (-85.1; -47.1%), -34.7% (-42.7;-18.4%), -16.1% (-22.1; -9.4%), -8.3% (-7.5; -1.3%), and − 3.9% (-3.9; -1.3%), respectively. The median myoglobin plasma clearance ten minutes after starting CS treatment was 64.0 ml/min (58.6; 73.5 ml/min), decreasing rapidly to 29.1 ml/min (26.5; 36.1 ml/min), 16.1 ml/min (11.9; 22.5 ml/min), 7.9 ml/min (5.5; 12.5 ml/min), and 3.7 ml/min (2.4; 6.4 ml/min) after one, three, six, and twelve hours, respectively.

Conclusion

The Cytosorb® adsorber effectively eliminates myoglobin. However, the adsorption capacity decreased rapidly after about three hours, resulting in reduced effectiveness. Early change of the adsorber in patients with severe rhabdomyolysis might increase the efficacy. The clinical benefit should be investigated in further clinical trials.

Trial registration

ClinicalTrials.gov NCT04913298. Registered 07 May 2021, https//clinicaltrials.gov/study/NCT04913298.

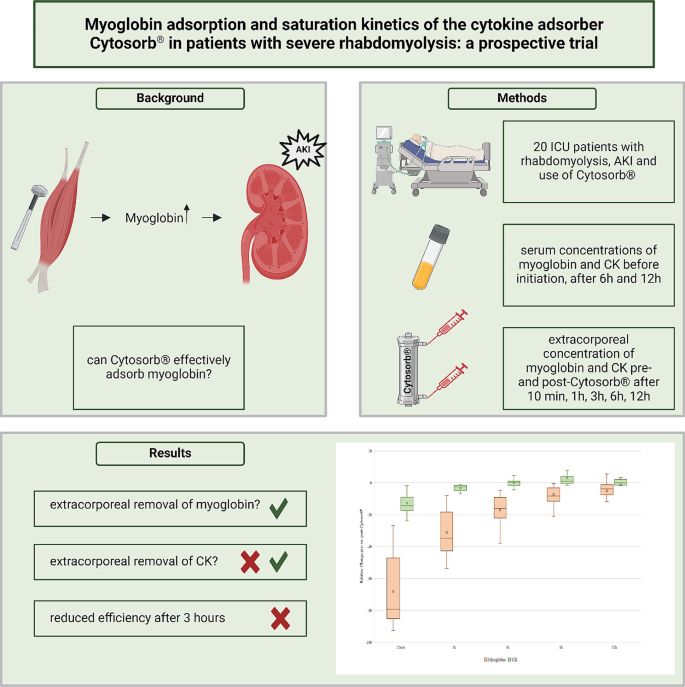

Graphical Abstract

Introduction

Rhabdomyolysis is a serious condition characterized by muscle damage and lysis of skeletal muscle cells, which can lead to acute and chronic kidney injury, electrolyte disorder, hypovolemia and acidosis [1,2,3].

A triad out of elevation of creatine kinase (CK), myalgia /muscle swelling and brown (tea-colored) urine can be observed in affected patients. Since there is no established definition for rhabdomyolysis, it is characteristically diagnosed by an increase of CK five times above normal [4]. The triggers for rhabdomyolysis are diverse. It is most frequently caused by muscle damage by trauma, vascular obliteration or physical overexertion. Furthermore, infections and sepsis, drugs, hypokalemia, or hereditary muscle disorders can lead to rhabdomyolysis [1, 5]. Due to muscle damage, high levels of CK, myoglobin, urea, potassium, and other organic acids are released into the bloodstream, causing acidosis, arrhythmias, and hemodynamic instability [6]. Another severe complication of rhabdomyolysis is acute kidney injury (AKI), which occurrs in up to 50% of patients and may require renal replacement therapy [2, 5, 7]. Beyond, the occurrence of AKI in patients with rhabdomyolysis is associated with a poorer prognosis and higher mortality [1, 8,9,10].

The pathomechanism of AKI caused by rhabdomyolysis is complex and not quite recognized. Myoglobin can precipitate with the Tamm-Horsfall protein, particularly if the urine is acidotic and occludes the renal tubule systems as a result [11, 12]. Further, direct renal toxicity of myoglobin due to the oxidation of hydroxyl radicals has been described [2, 5]. Third, myoglobin has a vasoconstrictive effect on renal arterioles and intravascular volume depletion leads to aggravation of AKI [1, 2, 13].

To date, there is no specific therapy for rhabdomyolysis. In addition to treating the cause of rhabdomyolysis, therapy includes adequate volume therapy, application of diuretics, urine alkalization and, if necessary, RRT. Since myoglobin seems to be the main cause of kidney damage in rhabdomyolysis, one therapeutic approach is extracorporeal removal from the bloodstream. A few studies and case reports already shown successful elimination of myoglobin through the use of a high-flux dialyzer or a medium-/ high cut-off dialyzer [14,15,16]. Another option is to use the cytokine adsorber Cytosorb® (CS). CS eliminates hydrophobic molecules up to a size of 55 kDa and is approved for the removal of cytokines, bilirubin, myoglobin, ticagrelor and rivaroxaban. It is largely used in patients in hyperinflammatory conditions like sepsis [17]. There are still few data describing the use of CS in patients with rhabdomyolysis. Dilken et al. presented a significant reduction of myoglobin (17 kDa) and CK, even though the CK with a size of 80 kDa should be beyond the adsorption spectrum [18]. Scharf et al. also showed a significant decrease of myoglobin by CS in a retrospective study of 43 patients with severe rhabdomyolysis [19].

To date, we do not have any information about the actual adsorption capacity and saturation kinetics of Cytosorb® for myoglobin. However, this information is of considerable relevance to ensure targeted therapy for these patients. Therefore, we conducted a prospective study to evaluate the adsorption performance and saturation kinetics of CS for myoglobin and CK. In addition, differences in the CS clearance regarding to initial concentration of myoglobin are another point of interest. The aim is to be able to assess the appropriate duration of use and to be able to suggest changing intervals for effective therapy.

Methods

Study setting

This is a single-center, prospective observational exploratory study to investigate the adsorption rate and saturation kinetics of CS for myoglobin and CK in patients with severe rhabdomyolysis. The patients were included between May 2021 and August 2022 during their stay in two intensive care units (ICU) at the Ludwig-Maximilians-University hospital in Munich. The local institutional review board approved the study (registration number 21–0236). The study was registered with clinicaltrials (NCT04913298). Prior to inclusion in the study, written informed consent was obtained from patients or their legal representatives as approved by the review board.

Study population

Adult patients (≥ 18 years) with the need for continuous RRT due to anuric/oliguric acute kidney injury, diagnosed according to the KDIGO consensus criteria, and CS-application, were included [20]. In addition, patients had to be diagnosed with rhabdomyolysis and plasma myoglobin levels > 5000 ng/ml. As mentioned above, the exclusion criterion was no consent from the patient or their legal representatives to participate in the study. The indication of CS application was at the discretion of the attending physician and independent of the study. As there was no previous data at the time of the study design, the number of cases to be included was set at 20 patients as an exploratory study. This was expected to capture potential variability in adsorption capacity. No sample size estimation was performed in the absence of available data.

Blood sampling and characteristics of RRT

CS was installed post-dialyzer. The patients received treatment with continuous RRT with multiFiltrate® device. Either continuous veno-venous hemodialysis (CVVHD) with citrate anticoagulation (CiCa) with Ultraflux® AV 1000 S filter or a postdilution continuous veno-venous hemodiafiltration (CVVHDF) with Ultraflux® AV 600 S filter and heparin anticoagulation was used. Both filters have a cut-off of approximately 30 kDa [21]. Blood samples (EDTA tubes) were taken at the extracorporeal circuit directly before the cartridge (= pre-CS) and directly after the cartridge (= post-CS) at defined time points. The sampling times were ten minutes after the start of CS treatment, and one, three, six, and twelve hours after initiation. Furthermore, myoglobin and CK plasma levels were measured shortly before the initiation of CS and after six and twelve hours. EDTA anticoagulated plasma was obtained by centrifugation of whole blood in the intensive care unit immediately after sampling. The separated plasma samples were immediately frozen and stored stably at -80 °C until measurement.

Laboratory measurements

Clinical chemistry parameters were tested in plasma using the standard clinical chemistry modular analyzer Cobas®8000 (Roche Diagnostics, Mannheim, Germany) at the institute of laboratory medicine. We tested Myoglobin using a specific electrochemiluminescence immunoassay and quantified CK using a kinetic assay covering all isoforms.

Data collection

For data evaluation, demographic data and clinical and laboratory variables were collected from the laboratory and patient information system. Different laboratory parameters were measured shortly before CS initiation in the clinical routine.

Statistical analysis

The statistical analysis was performed using IBM SPSS statistics (Version 29.0. IBM Corp., Armonk, NY, USA). A paired T-test with associated samples was used to compare the concentrations pre- and post-CS after testing a normal distribution of the studied parameters (Shapiro-Wilk-test). For variables without a normal distribution, the Wilcoxon-Test was performed. To compare differences in myoglobin elimination in patients with or without a very high baseline myoglobin (> 50.000 ng/ml), the U-test was used. The relative change (RC) of the parameters by CS at different time points was calculated using:

$$\eqalign{ Relative\, & Change\left( \% \right)\, = \,1\, \cr & - \left( {{{concentration(pre - post)} \over {concentration\left( {pre} \right)}}} \right)\,*100 \cr}$$

In addition, the myoglobin plasma clearances of CS was calculated using:

$$\eqalign{& Plasmaclearance\left( {{{ml} \over {min}}} \right)\, = \, \cr & \left( {bloodflow\,*\,\left( {1\, - \,hematocrit} \right)} \right)\,*\,\left( {{{concentration\,\left( {pre\, - \,post} \right)} \over {concentration\,\left( {pre} \right)}}} \right) \cr}$$

Results

Demographic and clinical data

A total of 20 patients were included in the exploratory study. The main diagnoses at admission to the ICU in 40% of the patients were major surgical procedures such as liver or lung transplants or vascular surgery. 25% of the patients were admitted due to an acute respiratory distress syndrome (ARDS). The main causes for rhabdomyolysis were sepsis (30%) and compartment syndrome (20%). In 25% of the patients, a specific reason for rhabdomyolysis remained unknown. There was no myocardial infarction in any of the patients. The median age was 52 years and 75% of patients were male. The Simplified Acute Physiology Score II (SAPS II) on the day of CS treatment was 78 points and the 28-days mortality was 50%. All patients were either anuric or oliguric. The median urine output during CS-treatment was 0 ml. In five patients, CS therapy was discontinued prematurely between six and twelve hours due to filter clotting (n = 3), death (n = 1) and change of dialysis modality (n = 1). Detailed patient characteristics can be found in Table 1.

Table 1 Patient characteristics and laboratory measurements
Full size table

Myoglobin and CK plasma concentration before and during CS-application

The median (IQR) myoglobin plasma concentration before initiation and at six and twelve hours was 56,894 ng/ml (11,544; 102,737 ng/ml), 40,125 ng/ml (7879; 75,638 ng/ml), and 52,189 ng/ml (10,848; 126,558 ng/ml), respectively. Six hours after the installation of CS, there was a significant decrease in plasma myoglobin levels (p = 0.001). No significant change was observed between six and twelve and between the initiation of CS and twelve hours. The median (IQR) CK plasma concentration at baseline and at six and twelve hours was 14,822 U/l (2565; 27,090 U/l), 17,333 U/l (2161; 28,328 U/l), and 18,275 U/l (831; 33,213 U/l), respectively. There was no significant change of CK plasma levels at any time. Figure 1 illustrates the myoglobin and CK plasma concentrations before, during, and at the end of CS application. Supplementary Table S1 presents the plasma concentrations of myoglobin (ng/ml) and CK (U/l) before initiation, six and twelve hours after CS of each patient.

Fig. 1
figure 1

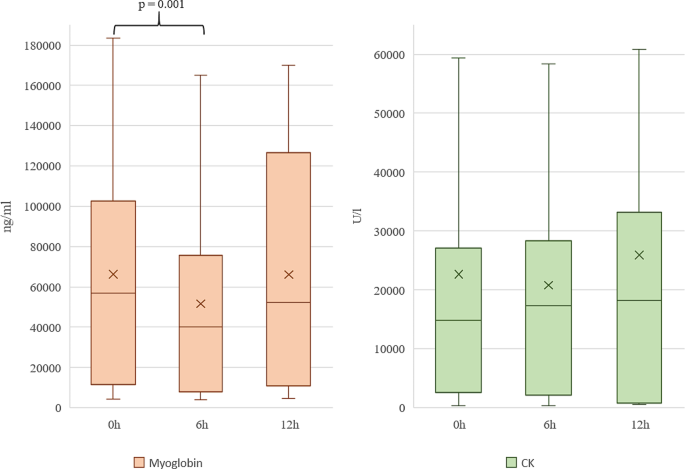

Plasma concentrations of myoglobin and CK at the defined time points. Note Plasma concentrations of myoglobin and CK before initiation, six and twelve hours after CS. The boxes of the boxplots represent the interquartile-range (IQR) and the line the median. Whiskers were limited to 1.5 times the IQR. The cross represents the mean

Full size image

Extracorporeal elimination of myoglobin and CK

A significant (p < 0.05) extracorporeal reduction of myoglobin (pre-CS vs. post-CS) could be observed at all measured time points (ten minutes, one, three, six and twelve hours). There was also a significant decrease in CK at ten minutes (p = 0.005) and one hour after CS installation (p < 0.001). Figure 2 displays the median concentrations of myoglobin and CK pre- and post-CS at the defined time points. Supplementary Tables 2–3 present myoglobin (ng/ml) and CK (U/l) concentrations pre- and post-CS at the defined time points of each patient.

Fig. 2
figure 2

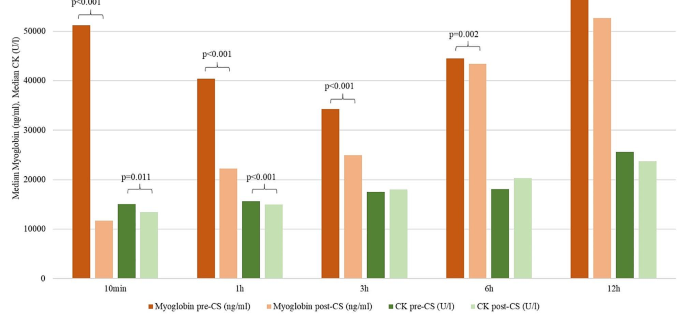

Median concentrations of myoglobin and CK pre- and post-CS

Full size image

The median (IQR) RC of myoglobin at the above-mentioned time points was − 79.2% (-85.1; -47.1%), -34.7% (-42.7;-18.4%), -16.1% (-22.1; -9.4%), -8.3% (-7.5; -1.3%), and − 3.9% (-3.9; -1.3%), respectively. Further, the median RC of CK at the defined time points was − 14.3% (-14.3; -9.1%), -2.8% (-5.0; -1.7%), 0.1% (-1.6; +1.0%), 1.0% (-0.4; + 3.9%) and 0.0% (-1.5; +1.9%), respectively. Figure 3 shows the change of RC of myoglobin and CK during the application of CS.

Fig. 3
figure 3

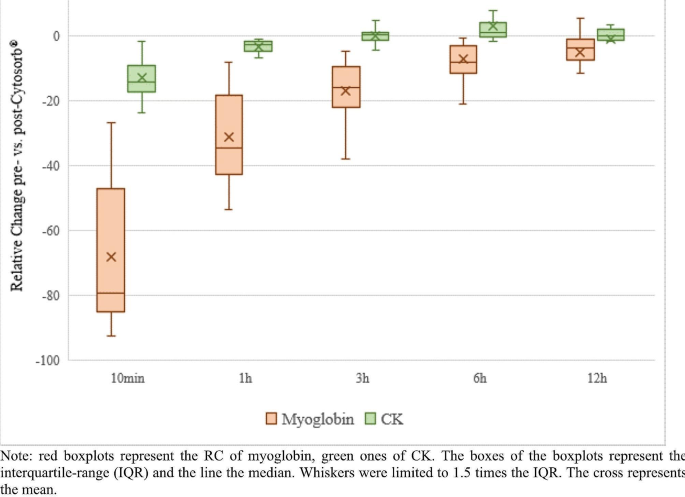

Relative Change (%) of myoglobin and CK due to Cytosorb®. Note red boxplots represent the RC of myoglobin, green ones of CK. The boxes of the boxplots represent the interquartile-range (IQR) and the line the median. Whiskers were limited to 1.5 times the IQR. The cross represents the mean

Full size image

Plasma clearance of myoglobin during CS application

The median (IQR) plasma clearance of myoglobin ten minutes after the application of CS was 64.0 ml/min (58.6; 73.5 ml/min) and decreased rapidly to 29.1 ml/min (26.5; 36.1 ml/min), 16.1 ml/min (11.9; 22.5 ml/min), 7.9 ml/min (5.5; 12.5 ml/min), and 3.7 ml/min (2.4; 6.4 ml/min) after one, three, six, and twelve hours, respectively.

Since the median plasma myoglobin concentration at baseline was 56,984 ng/ml, we divided the cohort into patients with a baseline myoglobin concentration below (Group 1: n = 10; 7 CVVHD, 3 CVVHDF) and above the median value (Group 2: n = 10; 7 CVVHD, 3 CVVHDF). Groups 1 and 2 had an initial median (IQR) myoglobin concentration of 11,691 ng/ml (9664; 38,643 ng/ml) and 99,466 ng/ml (84,332; 142,420 ng/ml), respectively. Table 2 shows the median myoglobin plasma clearances for both groups at all measured time points.

Table 2 Myoglobin plasma clearance of the two groups
Full size table
Fig. 4
figure 4

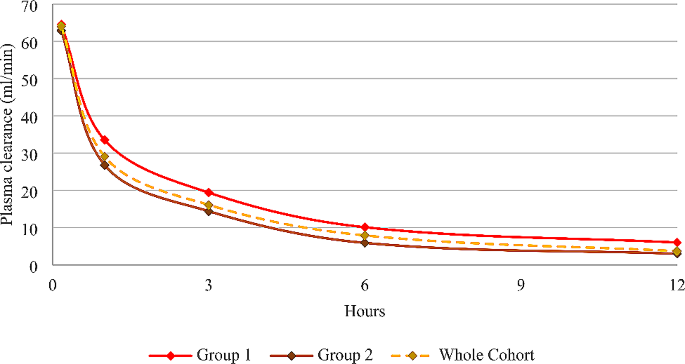

Myoglobin plasma clearance of group 1 (red), 2 (brown), and the whole cohort (yellow)

Full size image

Discussion

Severe rhabdomyolysis accompanied with high levels of myoglobin is a critical condition leading to acute kidney injury and in consequence to the potential need of renal replacement therapy [5, 7]. Since myoglobin in particular appears to be the main cause of kidney damage in rhabdomyolysis, one therapeutic approach is the extracorporeal removal of myoglobin [1]. In addition to causal and supportive therapy, various modalities of RRT as well as different dialyzers (high-/medium-cutoff) or the Cytosorb® adsorber cartridge for myoglobin elimination have been evaluated in the past [14,15,16, 22]. Considering there are few analyses elaborating the use of CS in rhabdomyolysis, especially in terms of adsorption capacity and saturation kinetics, this study was performed.

CS is approved for use in rhabdomyolysis and its ability to eliminate myoglobin in patients with rhabdomyolysis has been previously demonstrated [19, 23]. This is consistent with our results, showing a significant extracorporeal reduction of myoglobin at all time points. Although effective myoglobin clearance occurs in the first three hours after CS initiation, our analysis showed a rapid decline in myoglobin clearance after three to six hours. This reflects the patients’ plasma myoglobin concentration, which drops after six hours but rises to concentrations equal to or greater than baseline after twelve hours. These results implicate rapid saturation of CS, leading to inefficient adsorption for the remaining time of usage. Furthermore, brick saturation of CS is even more recognizable when considering patients with very high myoglobin concentrations. As we divided our cohort in two groups (initial myoglobin < and > 56,894 ng/ml (median baseline myoglobin concentration)), significantly lower clearance at one, three and six hours can be observed in the group with higher baseline myoglobin concentrations.

Recently, Albrecht et al. compared the myoglobin clearance of a high-cut-off dialyzer alone (n = 4) and in combination with CS (n = 4). They also describe early CS saturation with a median relative reduction of only 18% after two hours, which is quite similar to our results [23]. On the contrary, Albrecht et al. describe no difference in the velocity of saturation of CS in patients with a high baseline myoglobin concentration, indeed there was solely one patient with myoglobin levels > 30.000 ng/ml and only four patients in the entire cohort [23]. Nevertheless, there is a rapid saturation of CS not only for myoglobin, but also for other substances as bilirubin and bile acids [24]. Dilken et al. therefore changed the CS after twelve hours as they noticed a saturation with ongoing rhabdomyolysis in their patient, which lead to a further decrease in myoglobin [18].

High cut-off dialyzers such as EMiC®2 are also suitable and approved for myoglobin elimination. Weidhase et al. reported significantly higher myoglobin plasma clearance in high cut-off CVVHD (EMiC®2) compared to high-flux CVVHDF (Ultraflux® AV 1000 S). The advantage was a constant myoglobin plasma clearance of approximately 8 ml/min over 24 h [15]. In contrast, we observed a way higher myoglobin plasma clearance by CS in the first hour of application, which rapidly decreased to < 8 ml/min after only six hours. Comprising, a shorter change interval should be discussed, for example after three to six hours instead of after twelve to twenty-four hours, as the fabricator advises [25]. However, the side-effects of CS application, such as possible adsorption of anti-infective agents, a reduction in platelets count, and decrease in albumin concentration, as well as higher costs due to more frequent changes should also be taken into account [26,27,28,29,30,31,32].

Apart from the elimination properties of the different devices, the question of clinical benefit should be addressed. Gräfe et al. arises the question whether myoglobin elimination with CS integrated into RRT might lead to a faster kidney recovery compared to RRT alone in a propensity score matched cohort. They observed a significant higher probability of kidney recovery and significant lower myoglobin levels in patients receiving CS therapy [33]. Most recently, de Fallois et al. compared conservative management of rhabdomyolysis (without RRT) with extracorporeal therapies using different modalities, dialyzers, and an adsorber [34]. There were no significant differences in myoglobin reduction between the RRTs or between RRT and conservative treatment, but no information was given on the changing interval of CS [34]. In fact, patients without the need of RRT had the highest rate of myoglobin reduction, so preserving patients´ own renal function should be the primary goal in patients with rhabdomyolysis [34]. Therefore, CS therapy as a stand-alone device should be discussed in the future to perhaps prevent the kidney damaging effects of myoglobin. However, currently no data exist on the use of CS as a stand-alone device in the context of rhabdomyolysis and future studies would be desirable. Of course, the risks of extracorporeal procedures such as catheter infection, bleeding and thrombosis must be considered as well as device-associated side effects and complications [35, 36].

Notwithstanding that CK with a molecular weight of approximately 80 kDa should lie beyond the adsorption spectrum of CS (up to 60 kDa), extracorporeal elimination of CK was measured. There was a significant extracorporeal decrease of CK after ten minutes and one hour. However, the RC of CK was already considerably lower than the myoglobin clearance immediately after the installation of CS, and dropped to almost zero after three hours. Dilken et al. and Moresco et al. both describe a successful reduction of plasma concentration of myoglobin and CK in a case report [18, 37]. Also Albrecht et al., who as well analyzed extracorporeal samples, showed a short lasting but present relative reduction for CK [23]. Therefore, a higher adsorption spectrum for CS than previously assumed should be considered and verified, especially with regard to further side effects.

To the best of the authors´ knowledge, this is one of the first prospective studies to quantify extracorporeal myoglobin and CK adsorption of the CS cartridge itself. In summary, there is a significant extracorporeal elimination of myoglobin, but a rapid saturation of CS leads to an ineffective adsorption after three to six hours. An even faster decline of the myoglobin clearance was detected, especially in patients with very high myoglobin levels. These findings are important in order to improve the efficacy of the CS used in patients with rhabdomyolysis in clinical practice. Early change of adsorber seems to be crucial to avoid ineffective adsorption due to saturation, especially in patients with very high myoglobin levels. Therefore, serum myoglobin concentrations could be monitored at shorter intervals during CS therapy in order to respond to rising myoglobin levels. However, with more frequent adsorber changes, clinicians should be aware of an increased risk of side effects as adsorption of anti-infective agents, a reduction in platelets count, and decrease in albumin concentration [26,27,28,29,30,31,32]. Also, no significant reduction in CK can be expected from CS therapy.

This study has several limitations. First, the cohort of 20 patients appears to be small and inhomogeneous since reasons for rhabdomyolysis were quite diverse. However, despite the various causes, all patients have comparatively very high myoglobin levels and this is the largest prospective study in this field to date. In addition, the study objective was achieved with the patients included in the exploratory study. Second, both CVVHD and CVVHDF were used as dialysis modalities, yet this should have no impact on the myoglobin elimination of CS itself as the samples were collected extracorporeally right before and after CS and therefore unattached to possible myoglobin elimination by the dialyzer. Furthermore, some patients showed minor urine production during CS application, but the effect on the plasma myoglobin should be negligible for output of this magnitude. Since this study focused on elimination and saturation kinetics, the influence of CS on the outcome of the patients remains uncertain. Therefore, future randomized controlled clinical trials are needed to demonstrate the benefit of CS or other devices for myoglobin removal (e.g. EMiC®2) on the outcome of patients with severe rhabdomyolysis.

Conclusion

The Cytosorb® adsorber effectively eliminates myoglobin. However, the adsorption capacity decreases rapidly after about three hours, resulting in a reduced elimination. Early change of the adsorber in patients with severe rhabdomyolysis, especially in patients with very high myoglobin levels, might increase the efficacy. Therefore, and in order to investigate a clinical benefit of the therapy, further randomized controlled studies are necessary.

Data availability

All data generated or analyzed during this study are included in this published article [and its supplementary information files].

Abbreviations

AKI:

Acute kidney injury

ARDS:

Acute respiratory distress syndrome

BMI:

Body mass index

CK:

Creatine kinase

CRP:

C-reavtive protein

CS:

Cytosorb®

CVVHD(F):

Continuous veno-venous hemodialysis/hemodiafiltration

ICU:

Intensive care unit

LDH:

Lactate dehydrogenase

RC:

Relative Change

RRT:

Renal replacement therapy

SAPS II:

Simplified Acute Physiology Score

References

  1. Gaik CWT, Rhabdomyolyse. Ein Überblick zu Pathophysiologie, Diagnostik Und Therapie. Anästh Intensivmed. 2020;61:302–19.

    Google Scholar

  2. Petejova N, Martinek A. Acute kidney injury due to rhabdomyolysis and renal replacement therapy: a critical review. Crit Care. 2014;18(3):224.

    Article  PubMed  PubMed Central  Google Scholar

  3. Khan FY. Rhabdomyolysis: a review of the literature. Neth J Med. 2009;67(9):272–83.

    CAS  PubMed  Google Scholar

  4. Chavez LO, Leon M, Einav S, Varon J. Beyond muscle destruction: a systematic review of rhabdomyolysis for clinical practice. Crit Care. 2016;20(1):135.

    Article  PubMed  PubMed Central  Google Scholar

  5. Bosch X, Poch E, Grau JM. Rhabdomyolysis and acute kidney injury. N Engl J Med. 2009;361(1):62–72.

    Article  CAS  PubMed  Google Scholar

  6. Bagley WH, Yang H, Shah KH, Rhabdomyolysis. Intern Emerg Med. 2007;2(3):210–8.

    Article  CAS  PubMed  Google Scholar

  7. Candela N, Silva S, Georges B, Cartery C, Robert T, Moussi-Frances J, et al. Short- and long-term renal outcomes following severe rhabdomyolysis: a French multicenter retrospective study of 387 patients. Ann Intensive Care. 2020;10(1):27.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  8. Simpson JP, Taylor A, Sudhan N, Menon DK, Lavinio A. Rhabdomyolysis and acute kidney injury: creatine kinase as a prognostic marker and validation of the McMahon score in a 10-year cohort: a retrospective observational evaluation. Eur J Anaesthesiol. 2016;33(12):906–12.

    Article  CAS  PubMed  Google Scholar

  9. de Meijer AR, Fikkers BG, de Keijzer MH, van Engelen BG, Drenth JP. Serum creatine kinase as predictor of clinical course in rhabdomyolysis: a 5-year intensive care survey. Intensive Care Med. 2003;29(7):1121–5.

    Article  PubMed  Google Scholar

  10. Melli G, Chaudhry V, Cornblath DR. Rhabdomyolysis: an evaluation of 475 hospitalized patients. Med (Baltim). 2005;84(6):377–85.

    Article  Google Scholar

  11. Zager RA. Studies of mechanisms and protective maneuvers in myoglobinuric acute renal injury. Lab Invest. 1989;60(5):619–29.

    CAS  PubMed  Google Scholar

  12. Zager RA. Rhabdomyolysis and myohemoglobinuric acute renal failure. Kidney Int. 1996;49(2):314–26.

    Article  CAS  PubMed  Google Scholar

  13. Blomberg LM, Blomberg MR, Siegbahn PE. A theoretical study of myoglobin working as a nitric oxide scavenger. J Biol Inorg Chem. 2004;9(8):923–35.

    Article  CAS  PubMed  Google Scholar

  14. Jerman A, Andonova M, Persic V, Gubensek J. Extracorporeal removal of myoglobin in patients with rhabdomyolysis and acute kidney Injury: comparison of high and medium cut-off membrane and an Adsorber Cartridge. Blood Purif. 2022;51(11):907–11.

    Article  CAS  PubMed  Google Scholar

  15. Weidhase L, de Fallois J, Haußig E, Kaiser T, Mende M, Petros S. Myoglobin clearance with continuous veno-venous hemodialysis using high cutoff dialyzer versus continuous veno-venous hemodiafiltration using high-flux dialyzer: a prospective randomized controlled trial. Crit Care. 2020;24(1):644.

    Article  PubMed  PubMed Central  Google Scholar

  16. Guzman N, Podoll AS, Bell CS, Finkel KW. Myoglobin removal using high-volume high-flux hemofiltration in patients with oliguric acute kidney injury. Blood Purif. 2013;36(2):107–11.

    Article  CAS  PubMed  Google Scholar

  17. Houschyar KS, Pyles MN, Rein S, Nietzschmann I, Duscher D, Maan ZN, et al. Continuous hemoadsorption with a cytokine adsorber during Sepsis – a review of the literature. Int J Artif Organs. 2017;40(5):205–11.

    Article  CAS  PubMed  Google Scholar

  18. Dilken O, Ince C, van der Hoven B, Thijsse S, Ormskerk P, de Geus HRH. Successful reduction of Creatine kinase and myoglobin levels in severe Rhabdomyolysis using extracorporeal blood purification (CytoSorb®). Blood Purif. 2020;49(6):743–7.

    Article  CAS  PubMed  Google Scholar

  19. Scharf C, Liebchen U, Paal M, Irlbeck M, Zoller M, Schroeder I. Blood purification with a cytokine adsorber for the elimination of myoglobin in critically ill patients with severe rhabdomyolysis. Crit Care. 2021;25(1):41.

    Article  PubMed  PubMed Central  Google Scholar

  20. Andrassy KM. Comments on ‘KDIGO 2012 Clinical Practice Guideline for the evaluation and management of chronic kidney disease’. Kidney Int. 2013;84(3):622–3.

    Article  CAS  PubMed  Google Scholar

  21. GmbH FMCD, Fresenius Medical ATS. Product Range 2010 [updated July 2010. https://www.freseniusmedicalcare.com.tr/fileadmin/data/masterContent/pdf/Healthcare_Professionals/04_Acute_Therapies/07_CRRT_Fluids/ATS_Product_Range_03_14_GB_w__RGB_.pdf.

  22. Amyot SL, Leblanc M, Thibeault Y, Geadah D, Cardinal J. Myoglobin clearance and removal during continuous venovenous hemofiltration. Intensive Care Med. 1999;25(10):1169–72.

    Article  CAS  PubMed  Google Scholar

  23. Albrecht F, Schunk S, Fuchs M, Volk T, Geisel J, Fliser D et al. Rapid and Effective Elimination of Myoglobin with CytoSorb® Hemoadsorber in patients with severe rhabdomyolysis. Blood Purif. 2023:1–8.

  24. Greimel A, Habler K, Grafe C, Maciuga N, Brozat CI, Vogeser M, et al. Extracorporeal adsorption of protective and toxic bile acids and bilirubin in patients with cholestatic liver dysfunction: a prospective study. Ann Intensive Care. 2023;13(1):110.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  25. Cytosorb®. Cytosorb® Technische Daten 2023 [ https://cytosorb-therapy.com/de/der-adsorber/technische-daten-des-cytosorb-adsorber/.

  26. Reiter K, Bordoni V, Dall’Olio G, Ricatti MG, Soli M, Ruperti S, et al. In vitro removal of therapeutic drugs with a novel adsorbent system. Blood Purif. 2002;20(4):380–8.

    Article  CAS  PubMed  Google Scholar

  27. Scharf C, Weinelt F, Schroeder I, Paal M, Weigand M, Zoller M, et al. Does the cytokine adsorber CytoSorb® reduce Vancomycin exposure in critically ill patients with sepsis or septic shock? A prospective observational study. Ann Intensiv Care. 2022;12(1):44.

    Article  CAS  Google Scholar

  28. Poli EC, Rimmelé T, Schneider AG. Hemoadsorption with CytoSorb®. Intensive Care Med. 2019;45(2):236–9.

    Article  PubMed  Google Scholar

  29. Becker S, Lang H, Vollmer Barbosa C, Tian Z, Melk A, Schmidt BMW. Efficacy of CytoSorb®: a systematic review and meta-analysis. Crit Care. 2023;27(1):215.

    Article  PubMed  PubMed Central  Google Scholar

  30. König C, Röhr AC, Frey OR, Brinkmann A, Roberts JA, Wichmann D, et al. In vitro removal of anti-infective agents by a novel cytokine adsorbent system. Int J Artif Organs. 2019;42(2):57–64.

    Article  PubMed  Google Scholar

  31. Schädler D, Pausch C, Heise D, Meier-Hellmann A, Brederlau J, Weiler N, et al. The effect of a novel extracorporeal cytokine hemoadsorption device on IL-6 elimination in septic patients: a randomized controlled trial. PLoS ONE. 2017;12(10):e0187015.

    Article  PubMed  PubMed Central  Google Scholar

  32. Gleason TG, Argenziano M, Bavaria JE, Kane LC, Coselli JS, Engelman RM, et al. Hemoadsorption to reduce plasma-free Hemoglobin during Cardiac surgery: results of REFRESH I Pilot Study. Semin Thorac Cardiovasc Surg. 2019;31(4):783–93.

    Article  PubMed  Google Scholar

  33. Gräfe C, Liebchen U, Greimel A, Maciuga N, Bruegel M, Irlbeck M, et al. The effect of cytosorb® application on kidney recovery in critically ill patients with severe rhabdomyolysis: a propensity score matching analysis. Ren Fail. 2023;45(2):2259231.

    Article  PubMed  PubMed Central  Google Scholar

  34. de Fallois J, Scharm R, Lindner TH, Scharf C, Petros S, Weidhase L. Kidney replacement and conservative therapies in rhabdomyolysis: a retrospective analysis. BMC Nephrol. 2024;25(1):96.

    Article  PubMed  PubMed Central  Google Scholar

  35. Schwanke AA, Danski MTR, Pontes L, Kusma SZ, Lind J. Central venous catheter for hemodialysis: incidence of infection and risk factors. Rev Bras Enferm. 2018;71(3):1115–21.

    Article  PubMed  Google Scholar

  36. Masud A, Costanzo EJ, Zuckerman R, Asif A. The complications of Vascular Access in Hemodialysis. Semin Thromb Hemost. 2018;44(1):57–9.

    Article  PubMed  Google Scholar

  37. Moresco E, Rugg C, Ströhle M, Thoma M. Rapid reduction of substantially increased myoglobin and creatine kinase levels using a hemoadsorption device (CytoSorb(®))-A case report. Clin Case Rep. 2022;10(1):e05272.

    Article  PubMed  PubMed Central  Google Scholar

Download references
