Hemodynamic effects of extended prone position sessions in ARDS

Annals of Intensive Care20188:120

https://doi.org/10.1186/s13613-018-0464-9

  • Received: 18 July 2018
  • Accepted: 30 November 2018
  • Published:

Abstract

Background

Hemodynamic response to prone position (PP) has never been studied in a large series of patients with acute respiratory distress syndrome (ARDS). The primary aim of this study was to estimate the rate of PP sessions associated with cardiac index improvement. Secondary objective was to describe hemodynamic response to PP and during the shift from PP to supine position.

Methods

The study was a single-center retrospective observational study, performed on ARDS patients, undergoing at least one PP session under monitoring by transpulmonary thermodilution. PP sessions performed more than 10 days after ARDS onset, or with any missing cardiac index measurements before (T1), at the end (T3), and after the PP session (T4) were excluded. Changes in hemodynamic parameters during PP were tested after statistical adjustment for volume of fluid challenges, vasopressor and dobutamine dose at each time point to take into account therapeutic changes during PP sessions.

Results

In total, 107 patients fulfilled the inclusion criteria, totalizing 197 PP sessions. Changes in cardiac index between T1 and T2 (early response to PP) and between T1 and T3 (late response to PP) were significantly correlated (R2 = 0.42, p < 0.001) with a concordance rate amounting to 85%. Cardiac index increased significantly between T1 and T3 in 49 sessions (25% [95% confidence interval (CI95%) 18–32%]), decreased significantly in 46 (23% [CI95% 16–31%]), and remained stable in 102 (52% [CI95% 45–59%]). Global end-diastolic volume index (GEDVI) increased slightly but significantly from 719 ± 193 mL m−2 at T1 to 757 ± 209 mL m−2 at T3 and returned to baseline values at T4. Cardiac index and oxygen delivery decreased slightly but significantly from T3 to T4, without detectable increase in lactate level. Patients who increased their cardiac index during PP had significantly lower CI, GEDVI, global ejection fraction at T1, and received significantly more fluids than patients who did not.

Conclusion

PP is associated with an increase in cardiac index in 18% to 32% of all PP sessions and a sustained increase in GEDVI reversible after return to supine position. Return from prone to supine position is associated with a slight hemodynamic impairment.

Keywords

  • Acute respiratory distress syndrome
  • Cardiac output
  • Prone position
  • Positive end-expiratory pressure
  • Transpulmonary thermodilution
  • Cardiac preload

Background

Prone position (PP) sessions of at least 16 h are now an established treatment in acute respiratory distress syndrome (ARDS) patients with PaO2/FIO2 ratio below 150 mmHg, with a clear beneficial effect on mortality [1, 2]. However, PP impact on hemodynamics has only been ascertained in small studies [311], most of which have been performed before the era of protective ventilation and with shorter PP sessions.

While virtually all these studies failed to identify any impact of PP on cardiac index (CI), two recent studies [12, 13] have identified a positive hemodynamic effect of PP in two clinical scenarios. First, PP may improve CI in patients presenting with acute cor pulmonale (ACP), in relation to the unloading of the right ventricle [12]. Second, PP may also improve venous return and subsequently cardiac preload within 20 min after postural change, hence increasing CI in patients presenting preload responsiveness [13]. However, the persistence of this effect during prolonged PP sessions remains to date unknown. Since prevalence of ACP has been ascertained to 22% in a large series of 752 ARDS patients [14] and preload responsiveness before PP was identified in 50% of the patients [13], CI should increase with PP in a substantial fraction of ARDS patients, in conflict with previous reports.

Furthermore, if the shift from supine position (SP) to PP indeed increases CI by increasing venous return, we hypothesize that the shift from PP to SP may have an opposite effect, which remains unreported by previous studies [3, 4, 6, 7, 9, 11], although strongly underpowered to detect such an effect.

To our knowledge, hemodynamic response to prolonged PP sessions has never been studied in a large series of ARDS patients.

Methods

Study aim

The primary aim of the study was to estimate the rate of PP sessions associated with an improvement in CI. Secondary objective was to describe hemodynamic response before, during, and after a PP session.

Study design

This single-center retrospective observational study reports data from patients hospitalized between July 2012 and December 2016 in an academic medical intensive care unit (ICU). The study protocol was approved by an Ethics Committee (CPP Sud-Est II, IRB 9118), which waived the requirement for informed consent.

Patients

To be eligible, the subjects had to fulfill all the following inclusion criteria: ARDS according to the Berlin definition [15], application of at least one PP session, and hemodynamic monitoring by the PiCCO® device (Pulsion Medical Systems, Feldkirchen, Germany). Non-inclusion criteria were the following: age < 18 years, advanced directives to withhold or withdraw life-sustaining treatment initiated before PP session, and previous inclusion during prior ICU admission. PP sessions performed more than 10 days after ARDS onset, or performed during extracorporeal membrane oxygenation, or during which decision to withhold or withdraw life-sustaining treatment was taken, or with any missing CI measurements before, at the end, or after the PP session were excluded. Multiple PP sessions per patient during the same ICU stay could be analyzed should the eligibility criteria be fulfilled during sessions.

Protocol description

Since 2011, ARDS management is routinely performed in our ICU according to the protocol used in the PROSEVA study [1] as follows: protective ventilation with a tidal volume of 6 mL kg−1 predicted body weight, positive end-expiratory pressure (PEEP) setting using a PEEP–FiO2 table [16], administration of neuromuscular blocking agent during 48 h if PaO2/FiO2 < 150 mmHg [17], and daily PP during at least 16 h until achievement of a PaO2/FiO2 ≥ 150 mmHg with a PEEP ≤ 10 cm H2O and a FiO2 ≤ 60% in the SP. Hemodynamic monitoring, using the PiCCO® device, is routinely used whenever severe shock is associated with ARDS [18].

PiCCO® monitoring was performed using a femoral arterial catheter, connected to an Intellivue MP40 monitor (Philips Healthcare, Andover, MA, USA) equipped with the PiCCO® module. PiCCO® calibrations were performed in SP or PP with a horizontal bed position at least every 4 h, with a triplicate intravenous injection of 15 mL cold 9‰ sodium chloride [19, 20] through a venous catheter in the superior vena cava territory.

T1, T2, T3, and T4 were, respectively, defined as the times of PiCCO® calibration performed in the SP closest to PP onset, during PP closest to session onset, during PP closest to session ending, and after PP.

Data collection

The following variables were recorded at ICU admission or ARDS onset: demographic data, SAPS II score [21], ARDS severity [15], and risk factors. Occurrence of ACP on echocardiography was recorded at ICU admission and during follow-up in all patients and defined by the association of septal dyskinesia and right ventricle dilation (surface ratio of right ventricle over left ventricle greater than 0.6) [14] at any time. The following variables were recorded on the day of each PP session: SOFA score [22], time from ICU admission to PP session, cumulative fluid balance at PP session onset and during PP session, and ARDS adjunctive therapies. Hemodynamic variables were recorded at T1, T2, T3, and T4 of each PP session. Respiratory variables were recorded at T1, T3, and T4 of each PP session. Missing data per variable are reported in Additional file 1: Table S1.

Data analysis

Significant changes in CI and global end-diastolic volume index (GEDVI) were deemed present for variations greater than ± 15% [19]. Patients with an increase in PaO2/FIO2 ≥ 20 mmHg or a decrease in PaCO2 ≥ 1 mmHg at T3 relative to T1 were classified as O2 or CO2 responders to PP, respectively [23]. Patients with both increase in PaO2/FiO2 ≥ 20 mmHg and decrease in PaCO2 ≥ 1 mmHg at T3 relative to T1 were classified as O2 and CO2 responders to PP. Oxygen delivery was computed as previously described [24].

Statistical analysis

Statistical analysis was performed using R software with packages Lme4 [25], Lmertest [26], multcomp [27], MultinomialCI [28], and OptimalCutpoints [29].

We defined the PP session as the statistical unit. Power of the study was computed using the normal approximation confidence interval method. We calculated that with a sample size of at least 196 PP sessions, the study would provide at worst a ± 7% precision in the 95% confidence interval (CI95%) of the rate of PP sessions associated with CI improvement.

Numerical variables are expressed as mean ± standard deviation and categorical variables as counts with corresponding percentages. CI95% for multinomial proportions was computed using Sison and Glaz method [30]. Linear mixed models were used to take into account both measurement repetition during a PP session and multiple PP sessions per patient. Changes in hemodynamic variables over time were tested after adjustment for volume of fluid challenges, vasopressor and dobutamine doses to take into account therapeutic changes between time points. Multiple comparisons between groups were performed using Holm method. Diagnostic performance was assessed by computation of area under ROC curve (AUC) [31]. CI95% for AUC was computed using the Delong method. The optimal cutoff points were computed by maximizing the Youden index. A p value below 0.05 was chosen for statistical significance and computed using parametric bootstrapping [32].

Results

Population

A total of 191 patients fulfilled the inclusion criteria over the study period, among which 84 presented with non-inclusion criteria (Fig. 1). Characteristics of the 107 patients included in the study are reported in Table 1. Ten patients (9%) presented with ACP during follow-up, and all patients had at least one ultrasound evaluation before the first PP session of the study, with a delay amounting to 1 ± 2 days. In total, 60 PP sessions were excluded, and 197 were hence considered for analysis, whose detailed characteristics are reported in Table 2.
Fig. 1
Fig. 1

Study flowchart. ARDS acute respiratory distress syndrome, PPS prone positioning session

Table 1

Patients’ characteristics

Variable

Patients characteristics

n = 107

Age (year)

65 ± 12 (35; 89)

Male sex

73 (68%)

Body mass index (kg m−2)

29 ± 7 (16; 54)

SAPS II

62 ± 18 (32; 118)

Admission category



 Medical

103 (96%)

 Emergent surgery

2 (2%)

 Elective surgery

1 (1%)

 Trauma

1 (1%)

ARDS severity



 Moderate

30 (28%)

 Severe

77 (72%)

Time between ICU admission and ARDS onset

2 ± 4 (− 3; 27)

ARDS risk factorsa



 Pneumonia

79 (74%)

 Aspiration

34 (32%)

 Extra pulmonary sepsis

10 (9%)

 None

3 (3%)

Acute cor pulmonale

10 (9%)

Values are count (percentage) or mean ± standard deviation (extreme values)

ARDS acute respiratory distress syndrome, ICU intensive care unit, SAPS II simplified acute physiology score II, SOFA sepsis-related organ failure assessment

aTotal > 100% since multiple risk factors could be identified per patient

Table 2

Characteristics of prone positioning sessions

Variables

Session characteristics

n = 197

Number of PP sessions per patient

2 ± 2

Time between ARDS onset and PP session onset (day)

3 ± 3

Duration of PP session (h)

16 ± 3

SOFA score

15 ± 4

Body weight at PP session onset (kg)

86 ± 19

Cumulative fluid balance at PP session onset (kg)

2.3 ± 6.5

Fluid balance during PP session (kg)

0.8 ± 3.3

Fluid challenge during PP session

78 (40%)

Volume of fluid challenges during PP session (mL)

505 ± 1069

Renal replacement therapy

84 (43%)

Dobutamine administration

62 (31%)

Vasopressor administration

166 (84%)

Inhaled nitric oxide

39 (20%)

Neuromuscular blocking agents

182 (92%)

O2 responders to PP

157 (80%)

CO2 responders to PP

97 (49%)

O2 and CO2 responders to PP

85 (43%)

Values are count (percentage) or mean ± standard deviation

CO2 responders to PP = patients in which PaCO2 decreases by at least 1 mmHg between end of PP session and before PP session. O2 responders to PP = patients in which PaO2/FiO2 increases by at least 20 mmHg between end of PP session and before PP session. O2 and CO2 responders to PP = patients in which PaO2/FiO2 increases by at least 20 mmHg and PaCO2 decreases by at least 1 mmHg between end of PP session and before PP session

PP prone position, SOFA sepsis-related organ failure assessment

Hemodynamic and respiratory measurements

Actual T1 measurements were recorded 2 ± 2 h before PP onset, T2 at 3 ± 2 h after PP onset, T3 at 13 ± 3 h after PP onset, and T4 at 2 ± 2 h after return to SP.

Hemodynamic and respiratory measurements are reported in Tables 3 and 4, respectively. CI was not significantly modified during PP at both T2 and T3 after adjustment for fluid challenges, vasopressor and dobutamine dose, but significantly decreased after return to SP. Adjusted GEDVI increased slightly but significantly during PP and returned to baseline values at T4. Adjusted oxygen delivery decreased slightly but significantly after return to SP, without significant increase in lactate level. Response to PP was not significantly different between successive PP sessions, as we did not find any significant interaction between time points within session and successive PP sessions for all hemodynamic and respiratory variables.
Table 3

Hemodynamic parameters during prone positioning session

Variables

T1

T2

T3

T4

HR (min−1)

98 ± 23

99 ± 20a

96 ± 20

95 ± 21

MAP (mmHg)

76 ± 10

79 ± 12c

77 ± 12

78 ± 14

CVP (cm H2O)

13 ± 5

14 ± 5c

13 ± 5

14 ± 5

CI (L min m−2)

3.5 ± 1.3a

3.4 ± 1.2a

3.4 ± 1.1a

3.2 ± 1.1

GEF (%)

21 ± 7

20 ± 7c

21 ± 8

21 ± 7

EVLWI (mL kg−1 PBW)

13.8 ± 4.4

14.2 ± 4.7a

13.7 ± 4.7

13.1 ± 4.0

PVPI

2.6 ± 1.0b

2.5 ± 0.9

2.4 ± 0.9

2.5 ± 0.9

GEDVI (mL m−2)

719 ± 193

738 ± 185a,c

757 ± 209a,c

714 ± 200

CFI (min−1)

5.0 ± 1.9

4.8 ± 1.8c

4.8 ± 1.8c

4.7 ± 1.8c

PTV (mL)

1163 ± 362a

1189 ± 359a

1173 ± 354a

1116 ± 327

ITTV (mL)

2539 ± 653

2602 ± 638a,c

2619 ± 664a,c

2482 ± 655

DO2 (mL min m−2)

416 ± 145

NA

414 ± 139

387 ± 126b,c

Vasopressor dose* (µg kg min−1)

0.92 ± 1.66

0.92 ± 2.04

0.84 ± 1.67c

0.88 ± 1.76c

Dobutamine dose** (µg kg min−1)

2.6 ± 6.0

2.6 ± 5.8

2.8 ± 6.1

3.0 ± 6.2

Volume of fluid challenge since preceding time point*** (mL)

NA

158 ± 519

224 ± 566

123 ± 340

Values are mean ± standard deviation. All statistical tests are performed after adjustment for volume of fluid challenges since preceding time point, vasopressor and dobutamine dose unless specifically stated

CI, cardiac index; CFI, cardiac function index; CVP, central venous pressure; DO2, oxygen delivery; EVLWI, extravascular lung water index; GEDVI, global end-diastolic volume index; GEF, global ejection fraction; HR, heart rate; ITTV, intrathoracic thermal volume; MAP, mean arterial pressure; NA, not available; PBW, predicted body weight; PTV, pulmonary thermal volume; PVPI, pulmonary vascular permeability index; T1, before prone position, T2, beginning of prone position session; T3, end of prone position session; T4, after prone position session

ap < 0.05 versus T4; b p < 0.05 versus T3; c p < 0.05 versus T1

* Adjustment for volume of fluid challenges since preceding time point and dobutamine dose only; ** adjustment for volume of fluid challenges since preceding time point and vasopressor dose only; *** not tested for statistical significance

Table 4

Respiratory parameters during prone positioning session

Variables

T1

T3

T4

VT (mL kg−1 PBW)

6.2 ± 0.7

6.2 ± 0.8

6.1 ± 0.8

RR (min−1)

29 ± 5

29 ± 5

29 ± 5

I:E ratio (%)

42 ± 11

40 ± 9

39 ± 9

PEEP (cm H2O)

10 ± 3a,b

9 ± 3

9 ± 3

PEEPtot (cm H2O)

11 ± 2

10 ± 3

10 ± 3

Pplat (cm H2O)

23 ± 4

22 ± 5c

22 ± 4c

Δp (cm H2O)

12 ± 4

11 ± 4

11 ± 3

pH

7.35 ± 0.10

7.38 ± 0.09a,c

7.37 ± 0.09c

PaCO2 (mmHg)

45 ± 10

43 ± 11

44 ± 10

PaO2/FiO2

112 ± 28

179 ± 62a,c

153 ± 60c

Lactate (mmol L−1)

3.6 ± 3.2

3.3 ± 3.0

3.2 ± 3.0

Hemoglobin (g L−1)

101 ± 22

98 ± 21c

98 ± 20c

Values are mean ± standard deviation

Δp, driving pressure; FiO2, inspired oxygen fraction; I:E ratio, inspiratory-to-expiratory time ratio; PaCO2, partial pressure of arterial carbon dioxide; PaO2, partial pressure of arterial oxygen; PBW, predicted body weight; PEEP, external PEEP; PEEPtot, total PEEP of the respiratory system; Pplat, plateau pressure of the respiratory system; RR, respiratory rate; T1, before prone position, T3, end of prone position session; T4, after prone position session; VT, tidal volume

ap < 0.05 versus T4; b p < 0.05 versus T3; c p < 0.05 versus T1

Early hemodynamic response to prone position at T2

Between T1 and T2, CI increased significantly in 42 sessions (22% [CI95% 15–29%]), decreased significantly in 33 (17% [CI95% 10–24%]), and remained stable in 119 (61% [CI95% 55–68%]). Changes in CI between T1 and T2 (early response) and between T1 and T3 (late response) were significantly correlated (R2 = 0.42, p < 0.001, Fig. 2a) with a concordance rate amounting to 85%. Similar results were obtained with changes in GEDVI (Fig. 2b).
Fig. 2
Fig. 2

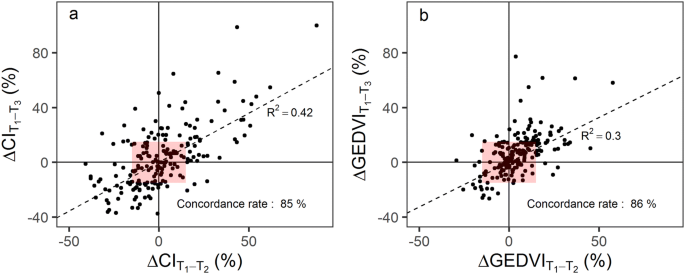

Early versus late changes in CI (a) and GEDVI (b) during prone position. Symbols are individual values for each prone position session. Broken lines are regression lines performed on the whole dataset with corresponding R2. Concordance rate is the percentage of data points falling into one of the two quadrants of agreement (i.e., upper right and lower left quadrants in which hemodynamic variations between T1 and T2 and between T1 and T3 have the same directional changes). Red rectangles are exclusion zones for computation of concordance rate, excluding data points with changes in both variables below 15%. ΔCIT1–T2: change in CI between T1 and T2; ΔCIT1–T3: change in CI between T1 and T3; ΔGEDVIT1–T2 = change in GEDVI between T1 and T2; ΔGEDVIT1–T3 = change in GEDVI between T1 and T3

Late hemodynamic response to prone position at T3

Between T1 and T3, CI increased significantly in 49 sessions (25% [CI95% 18–32%]), decreased significantly in 46 (23% [CI95% 16–31%]), and remained stable in 102 (52% [CI95% 45–59%]). Patients who increased their CI during PP had significantly lower CI, GEDVI, global ejection fraction at T1, and received significantly more fluids than patients who did not (Additional file 2: Table S2). Patients who decreased their CI between T1 and T3 had significantly higher CI and GEDVI at T1 and received significantly more vasopressors than patients who did not. Fluid balance during PP, oxygenation, and/or carbon dioxide response to PP was not significantly associated with classification of CI response. CI at T1 was the variable with the best diagnostic performance to predict CI increase (AUC = 0.79 [CI95% 0.73–0.86]) and decrease (AUC = 0.68 [CI95% 0.59–0.77]) between T1 and T3 (Additional file 3: Table S3; Additional file 4: Table S4). A CI below 2.8 L min m−2 had a sensitivity of 0.69 [CI95% 0.55–0.82] and a specificity of 0.76 [CI95% 0.69–0.83] to predict an increase in CI greater than 15% at T3. A CI above 3.5 L min m−2 had a sensitivity of 0.63 [CI95% 0.48–0.77] and a specificity of 0.70 [CI95% 0.62–0.77] to predict a decrease in CI greater than 15% at T3.

CI response to PP was highly heterogeneous among successive sessions in the 40 patients studied repeatedly (Additional file 5: Figure S1).

Change in CI (ΔCI) and GEDVI (ΔGEDVI) between T1 and T3 were weakly correlated (R2 = 0.14, p < 0.001, Additional file 6: Figure S2), while correlations were substantially higher in the following subgroups of patients based on their changes in cardiac function index between T1 and T3 (ΔCFI = ΔCI/ΔGEDVI): patients with ΔCFI ≥ 15% (i.e., with CI increase not fully explained by an increase in GEDVI), patients with − 15% < ΔCFI < 15% (i.e., with CI changes explained by changes in GEDVI or no variation in both GEDVI and CI), and patients with ΔCFI ≤ − 15% (i.e., with CI decrease not fully explained by a decrease in GEDVI).

Changes in CI and GEDVI beyond significant thresholds between T1 and T3, or T3 and T4, were used to classify sessions into nine categories (Fig. 3), in an attempt to identify groups with CI variations related or unrelated to changes in GEDVI. CI increase between T1 and T3 was associated with GEDVI increase in 11% of the sessions (mainly during sessions without concomitant fluid challenge), with stable GEDVI in 13%, and with GEDVI decrease in 1%. Virtually all PP sessions performed on patients with ACP were associated with no change or an increase in CI between T1 and T3 (Fig. 3). CI decrease between T1 and T3 was mainly associated with stable GEDVI occurring in 16% of the sessions.
Fig. 3
Fig. 3

Hemodynamic pattern as a function of ΔCI and ΔGEDVI between T1 and T3. a Symbols are individual values for each prone position session. Broken lines are threshold values for significant changes in CI (+ or − 15%) and GEDVI (+ or − 15%). Red dots refer to patients with ACP. Blue dots refer to patients without ACP and without fluid challenge between T1 and T3. Green dots refer to patients without ACP and with any fluid challenge between T1 and T3. b Bars are percentage of patients falling in each category. CI, cardiac index; GEDVI, global end-diastolic volume index; ACP, acute cor pulmonale; ΔCI, change in CI; ΔGEDVI, change in GEDVI; PP, prone position; T1, before prone position; T3, end of prone position session

Hemodynamic response during the shift from prone to supine position

CI decreased between T3 and T4 in 27% of the sessions and was associated with a decrease in GEDVI in 10% of the sessions and with a stable GEDVI in 17% of the sessions (Fig. 4).
Fig. 4
Fig. 4

Hemodynamic pattern as a function of ΔCI and GEDVI between T3 and T4. Bars are percentage of patients falling in each category. CI, cardiac index; GEDVI, global end-diastolic volume index; ΔCI, change in CI; ΔGEDVI, change in GEDVI; T3, end of prone position session; T4, after prone position session

Change in CI between T1 and T3 was not correlated with change in CI between T3 and T4, while change in GEDVI between T1 and T3 was negatively correlated with change in GEDVI between T3 and T4 (Additional file 7: Figure S3).

Discussion

The main findings of the study are the following: (1) Early and late hemodynamic response to PP are strongly related; (2) CI significantly increases at the end of 25% of PP sessions; (3) PP is associated with a slight yet sustained increase in GEDVI, reversible after return in SP, unrelated to fluid administration; (4) return to SP is associated with a small but significant decrease in CI and oxygen delivery; (5) PP may improve cardiovascular status by increasing cardiac preload and hence CI in patients with preload responsiveness.

Effect of prone position on CI

The study results are in line with previous smaller studies showing the lack of significant impact of the shift from SP to PP on CI in unselected ARDS patients [410]. Still, 25% of the PP sessions were associated with a significant increase in CI at T3 compared to baseline, of which approximately half were related to an increase in GEDVI (and presumably an increase in cardiac preload). Of note, most of these patients increased their GEDVI without receiving any fluid challenge. The remaining half displayed no detectable change in GEDVI, suggesting an improvement in CI unrelated to cardiac preload. It may be speculated that this latter group of patients might encompass patients with various degrees of pulmonary vascular system dysfunction, benefiting from the unloading of their right ventricle in response to PP [12]. Of note, the rate of PP sessions associated with an increase in CI related to cardiac preload increase at T3 is substantially lower in the present study than in Jozwiak et al. [13]. Besides differences in case mix, timing of measurements, and PEEP management, a difference in the starting position (strict supine in the present study vs. 45° semi-recumbent) may partly explain this discrepancy. Oppositely, 23% of the PP sessions were associated with a significant decrease in CI at T3 compared to baseline, the majority of which without detectable change in GEDVI. The significantly greater CI, GEDVI, and vasopressor dose at baseline in this subgroup of patients suggest that the decrease in CI during PP may be related to resolution of an hyperdynamic state during the PP session. Finally, the high concordance rate between early and late cardiac index changes suggests that hemodynamic response to PP is persistent throughout the whole PP session.

Unlike previous smaller studies [4, 6, 11], the present study identified a small but significant decrease in CI and oxygen delivery during the shift from PP to SP. Apart from differences in case mix, ventilatory settings, or timing of measurement, it is likely that previous studies were strongly underpowered to detect this effect. Our data suggest that this decrease is related to a decrease in preload in approximately 1/3 of the sessions, suggesting reversal of the PP-related preload improvement effect identified by Jozwiak et al. [13].

Effect of prone position on GEDVI

We observed a slight but significant increase in GEDVI at the end of the PP session, reversible after return to the SP, in line with a previous smaller study [33]. Since PP modifies regional ventilation–perfusion ratios [34], it has been speculated that this slight increase in GEDVI might be related to an increase in pulmonary thermal volume in PP. The lack of significant difference regarding this parameter between T1, T2 and T3 does not support this hypothesis, along with the fact that most of the PP sessions with significant increase in GEDVI between T1 and T3 were associated with an increase in CI. This suggests that changes in GEDVI during the PP session remain a reliable indicator of changes in preload.

It might be questioned whether the slight increase in GEDVI related to the shift from supine to PP is associated with a meaningful increase in cardiac preload. Since this increase is of similar magnitude than that provided by a 500-mL fluid challenge [35, 36], it suggests that the observed change in cardiac preload related to PP is clinically relevant. Furthermore, our study confirms the positive effect of PP on cardiac preload previously shown in a smaller study within 20 min after the postural change [13] and extends this finding up to the end of longer PP sessions [1].

Strengths and limits

Some limitations of the present study should be acknowledged. First, the retrospective feature of the study explains the heterogeneity between patients regarding assessment time points and the high rate of missing values for some variables. Second, the present study selected a subpopulation of ARDS patients with acute circulatory failure requiring PiCCO® monitoring, making a selection bias uncontrolled for. Third, the observational design does not allow to control for the effect of time. Fourth, some important variables are lacking (pulmonary artery pressure, comprehensive evaluation of right ventricle function, assessment of preload reserve status, etc.), hindering interpretation of hemodynamic data. Five, co-interventions (such as fluid loading, change in vasopressor dose) during study could have interfered with PP effect on hemodynamics, although these confounders were accounted for in the statistical analysis. Sixth, a 15% conservative threshold was used to detect significant changes in CI and GEDVI, since the least significant change detectable by thermodilution is around 12% when three boluses are used for PiCCO® calibration [19], thereby limiting the potential of this technique for detecting hemodynamic changes. Seven, the rate of patients with ACP was low in the present study (9%), as compared to 22% in a recent multicenter study [14], and may be partly explained by the lack of systematic daily ultrasound evaluation in the present study, but may be also related to higher tidal volumes (6.2 vs. 6.8 mL kg−1) and driving pressures (12 vs. 16 cm H2O) in the latter, in addition to a lower use of PP (100% vs. 29%).

Nevertheless, the number of studied PP sessions outranks by almost one order of magnitude previous studies on the effect of PP on CI. This substantial size allowed to compute rates of CI response to PP with relatively narrow confidence intervals and to perform multivariate analysis of factors associated with CI variations, allowing control of confounding variables.

Clinical implications

The present study identified a beneficial effect of PP on CI in 25% of the sessions, especially in patients with lower CI before PP, associated with an increase in cardiac preload. This suggests that hemodynamic instability should not be an obstacle to PP. Since return to SP may be associated with a decrease in CI in approximately a quarter of the PP sessions, serial evaluations of CI and fluid responsiveness may be recommended during this period.

Conclusions

Prone position is associated with an increase in CI in 18% to 32% of the PP sessions and a sustained increase in GEDVI, both reversible after return to SP. PP may improve CI by increasing cardiac preload in patients with preload responsiveness. Return from PP to SP is associated with a slight hemodynamic impairment, at least partly related to decreased cardiac preload.

Abbreviations

ACP:

acute cor pulmonale

ARDS:

acute respiratory distress syndrome

AUC:

area under ROC curve

CI:

cardiac index

CI95%

95% confidence interval

GEDVI:

global end-diastolic volume index

ICU:

intensive care unit

PEEP:

positive end-expiratory pressure

PP:

prone position

SP:

supine position

Declarations

Authors’ contributions

MR made substantial contributions to data acquisition, study analysis, and interpretation of data; AND drafted the manuscript, AND approved the version to be published; AND agreed to be accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. LB made substantial contributions to study analysis, and interpretation of data; AND revised the manuscript for important intellectual content; AND approved the version to be published. HY made substantial contributions to study analysis and interpretation of data; AND revised the manuscript for important intellectual content; AND approved the version to be published. ZR made substantial contributions to study analysis and interpretation of data; AND revised the manuscript for important intellectual content; AND approved the version to be published. ALD made substantial contributions to study analysis and interpretation of data; AND revised the manuscript for important intellectual content; AND approved the version to be published. FL made substantial contributions to study analysis and interpretation of data; AND revised the manuscript for important intellectual content; AND approved the version to be published. SPR made substantial contributions to study analysis and interpretation of data; AND revised the manuscript for important intellectual content; AND approved the version to be published. CG made substantial contributions to study design, data acquisition, study analysis, and interpretation of data; AND revised the manuscript for important intellectual content; AND approved the version to be published. JCR made substantial contributions to study design, study analysis, and interpretation of data; AND drafted the manuscript; AND approved the version to be published; AND agreed to be accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All authors read and approved the final manuscript.

Acknowledgements

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Availability of data and materials

All data generated or analyzed during this study are included in this published article and its supplementary information files (see Additional file 8).

Consent for publication

Not applicable.

Ethics approval and consent to participate

The study protocol was approved by an Ethics Committee (CPP Sud-Est II, IRB 9118), which waived the requirement for informed consent.

Funding

None.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Service de Réanimation Médicale, Hôpital De La Croix Rousse, Hospices Civils de Lyon, 103 Grande Rue de la Croix Rousse, 69004 Lyon, France
(2)
Université de Lyon, Université LYON I, Lyon, France
(3)
IMRB, INSERM 955Eq13, Créteil, France
(4)
CREATIS INSERM 1044 CNRS 5220, Villeurbanne, France

References

  1. Guerin C, Reignier J, Richard J-C, Beuret P, Gacouin A, Boulain T, et al. Prone positioning in severe acute respiratory distress syndrome. N Engl J Med. 2013;368:2159–68.View ArticlePubMed CentralPubMedGoogle Scholar
  2. Guérin C, Beuret P, Constantin JM, Bellani G, Garcia-Olivares P, Roca O, et al. A prospective international observational prevalence study on prone positioning of ARDS patients: the APRONET (ARDS Prone Position Network) study. Intensive Care Med. 2018;44:22–37.View ArticlePubMedGoogle Scholar
  3. Fridrich P, Krafft P, Hochleuthner H, Mauritz W. The effects of long-term prone positioning in patients with trauma-induced adult respiratory distress syndrome. Anesth Analg. 1996;83:1206–11.View ArticlePubMedGoogle Scholar
  4. Jolliet P, Bulpa P, Chevrolet JC. Effects of the prone position on gas exchange and hemodynamics in severe acute respiratory distress syndrome. Crit Care Med. 1998;26:1977–85.View ArticlePubMedGoogle Scholar
  5. Germann P, Pöschl G, Leitner C, Urak G, Ullrich R, Faryniak B, et al. Additive effect of nitric oxide inhalation on the oxygenation benefit of the prone position in the adult respiratory distress syndrome. Anesthesiology. 1998;89:1401–6.View ArticlePubMedGoogle Scholar
  6. Pelosi P, Tubiolo D, Mascheroni D, Vicardi P, Crotti S, Valenza F, et al. Effects of the prone position on respiratory mechanics and gas exchange during acute lung injury. Am J Respir Crit Care Med. 1998;157:387–93.View ArticlePubMedGoogle Scholar
  7. Kiefer P, Morin A, Putzke C, Wiedeck H, Georgieff M, Radermacher P. Influence of prone position on gastric mucosal-arterial PCO2 gradients. Intensive Care Med. 2001;27:1227–30.View ArticlePubMedGoogle Scholar
  8. Lee DL, Chiang HT, Lin SL, Ger LP, Kun MH, Huang YC. Prone-position ventilation induces sustained improvement in oxygenation in patients with acute respiratory distress syndrome who have a large shunt. Crit Care Med. 2002;30:1446–52.View ArticlePubMedGoogle Scholar
  9. McAuley DF, Giles S, Fichter H, Perkins GD, Gao F. What is the optimal duration of ventilation in the prone position in acute lung injury and acute respiratory distress syndrome? Intensive Care Med. 2002;28:414–8.View ArticlePubMedGoogle Scholar
  10. Gainnier M, Michelet P, Thirion X, Arnal JM, Sainty JM, Papazian L. Prone position and positive end-expiratory pressure in acute respiratory distress syndrome. Crit Care Med. 2003;31:2719–26.View ArticlePubMedGoogle Scholar
  11. Matejovic M, Rokyta R, Radermacher P, Krouzecky A, Sramek V, Novak I. Effect of prone position on hepato-splanchnic hemodynamics in acute lung injury. Intensive Care Med. 2002;28:1750–5.View ArticlePubMedGoogle Scholar
  12. Vieillard-Baron A, Charron C, Caille V, Belliard G, Page B, Jardin F. Prone positioning unloads the right ventricle in severe ARDS. Chest. 2007;132:1440–6.View ArticlePubMedGoogle Scholar
  13. Jozwiak M, Teboul J-L, Anguel N, Persichini R, Silva S, Chemla D, et al. Beneficial hemodynamic effects of prone positioning in patients with acute respiratory distress syndrome. Am J Respir Crit Care Med. 2013;188:1428–33.View ArticlePubMedGoogle Scholar
  14. Mekontso Dessap A, Boissier F, Charron C, Bégot E, Repessé X, Legras A, et al. Acute cor pulmonale during protective ventilation for acute respiratory distress syndrome: prevalence, predictors, and clinical impact. Intensive Care Med. 2016;42:862–70.View ArticlePubMedGoogle Scholar
  15. ARDS Definition Task Force, Ranieri VM, Rubenfeld GD, Thompson BT, Ferguson ND, Caldwell E, et al. Acute respiratory distress syndrome: the Berlin definition. JAMA. 2012;307:2526–33.Google Scholar
  16. Acute Respiratory Distress Syndrome Network. Ventilation with lower tidal volumes as compared with traditional tidal volumes for acute lung injury and the acute respiratory distress syndrome. N Engl J Med. 2000;342:1301–8.View ArticleGoogle Scholar
  17. Papazian L, Forel JM, Gacouin A, Penot-Ragon C, Perrin G, Loundou A, et al. Neuromuscular blockers in early acute respiratory distress syndrome. N Engl J Med. 2010;363:1107–16.View ArticlePubMedGoogle Scholar
  18. Cecconi M, De Backer D, Antonelli M, Beale R, Bakker J, Hofer C, et al. Consensus on circulatory shock and hemodynamic monitoring. Task force of the European Society of Intensive Care Medicine. Intensive Care Med. 2014;40:1795–815.View ArticlePubMed CentralPubMedGoogle Scholar
  19. Monnet X, Persichini R, Ktari M, Jozwiak M, Richard C, Teboul J-L. Precision of the transpulmonary thermodilution measurements. Crit Care. 2011;15:R204.View ArticlePubMed CentralPubMedGoogle Scholar
  20. Huber W, Kraski T, Haller B, Mair S, Saugel B, Beitz A, et al. Room-temperature vs iced saline indicator injection for transpulmonary thermodilution. J Crit Care. 2014;29:1133.e7–14.View ArticleGoogle Scholar
  21. Le Gall JR, Lemeshow S, Saulnier F. A new Simplified Acute Physiology Score (SAPS II) based on a European/North American multicenter study. JAMA. 1993;270:2957–63.View ArticlePubMedGoogle Scholar
  22. Vincent JL, Moreno R, Takala J, Willatts S, De Mendonca A, Bruining H, et al. The SOFA (Sepsis-related Organ Failure Assessment) score to describe organ dysfunction/failure. On behalf of the Working Group on Sepsis-Related Problems of the European Society of Intensive Care Medicine. Intensive Care Med. 1996;22:707–10.View ArticlePubMedGoogle Scholar
  23. Gattinoni L, Vagginelli F, Carlesso E, Taccone P, Conte V, Chiumello D, et al. Decrease in PaCO2 with prone position is predictive of improved outcome in acute respiratory distress syndrome. Crit Care Med. 2003;31:2727–33.View ArticlePubMedGoogle Scholar
  24. Bihari D, Smithies M, Gimson A, Tinker J. The effects of vasodilation with prostacyclin on oxygen delivery and uptake in critically ill patients. N Engl J Med. 1987;317:397–403.View ArticlePubMedGoogle Scholar
  25. Bates D, Maechler M, Bolker B, Walker S. Fitting linear mixed-effects models using lme4. J Stat Softw. 2015;67:1–48.View ArticleGoogle Scholar
  26. Kuznetsova A, Brockhoff PB, Christensen RHB. LmerTest: tests in linear mixed effects models. 2016. http://CRAN.R-project.org/package=lmerTest. Accessed 5 Dec 2018.
  27. Hothorn T, Bretz F, Westfall P. Simultaneous inference in general parametric models. Biom J. 2008;50:346–63.View ArticlePubMed CentralGoogle Scholar
  28. Villacorta PJ. MultinomialCI: simultaneous confidence intervals for multinomial proportions according to the method by Sison and Glaz. 2012. https://CRAN.R-project.org/package=MultinomialCI. Accessed 5 Dec 2018.
  29. Lopez-Raton M, Rodriguez-Alvarez MX, Cadarso-Suárez C, Gude-Sampedro F. OptimalCutpoints: an R package for selecting optimal cutpoints in diagnostic tests. J Stat Softw. 2014;61:1–36.View ArticleGoogle Scholar
  30. Sison CP, Glaz J. Simultaneous confidence intervals and sample size determination for multinomial proportions. J Am Stat Assoc. 1995;90:366–9.View ArticleGoogle Scholar
  31. Robin X, Turck N, Hainard A, Tiberti N, Lisacek F, Sanchez J-C, et al. pROC: an open-source package for R and S+ to analyze and compare ROC curves. BMC Bioinform. 2011;12:77.View ArticleGoogle Scholar
  32. Luke SG. Evaluating significance in linear mixed-effects models in R. Behav Res Methods. 2017;49:1494–502.View ArticlePubMedGoogle Scholar
  33. Brücken U, Grensemann J, Wappler F, Sakka SG. Influence of prone positioning on the measurement of transpulmonary thermodilution-derived variables in critically ill patients. Acta Anaesthesiol Scand. 2011;55:1061–7.View ArticlePubMedGoogle Scholar
  34. Richard JC, Bregeon F, Costes N, Bars DL, Tourvieille C, Lavenne F, et al. Effects of prone position and positive end-expiratory pressure on lung perfusion and ventilation. Crit Care Med. 2008;36:2373–80.View ArticlePubMedGoogle Scholar
  35. Michard F, Alaya S, Zarka V, Bahloul M, Richard C, Teboul JL. Global end-diastolic volume as an indicator of cardiac preload in patients with septic shock. Chest. 2003;124:1900–8.View ArticlePubMedGoogle Scholar
  36. Yonis H, Bitker L, Aublanc M, Perinel Ragey S, Riad Z, Lissonde F, et al. Change in cardiac output during Trendelenburg maneuver is a reliable predictor of fluid responsiveness in patients with acute respiratory distress syndrome in the prone position under protective ventilation. Crit Care. 2017;21:295.View ArticlePubMed CentralPubMedGoogle Scholar

Copyright

© The Author(s) 2018

Advertisement
