Annals of Intensive Care

Annals of Intensive Care Cover Image
Research
Open Access

Respiratory mechanics and lung stress/strain in children with acute respiratory distress syndrome

  • Davide Chiumello1, 2Email author,
  • Giovanna Chidini3,
  • Edoardo Calderini3,
  • Andrea Colombo2,
  • Francesco Crimella2 and
  • Matteo Brioni2
Annals of Intensive Care20166:11

https://doi.org/10.1186/s13613-016-0113-0

©  Chiumello et al. 2016

Received: 27 October 2015

Accepted: 26 January 2016

Published: 5 February 2016

Abstract

Background

In sedated and paralyzed children with acute respiratory failure, the compliance of respiratory system and functional residual capacity were significantly reduced compared with healthy subjects. However, no major studies in children with ARDS have investigated the role of different levels of PEEP and tidal volume on the partitioned respiratory mechanic (lung and chest wall), stress (transpulmonary pressure) and strain (inflated volume above the functional residual capacity).

Methods

The end-expiratory lung volume was measured using a simplified closed circuit helium dilution method. During an inspiratory and expiratory pause, the airway and esophageal pressure were measured. Transpulmonary pressure was computed as the difference between airway and esophageal pressure.

Results

Ten intubated sedated paralyzed healthy children and ten children with ARDS underwent a PEEP trial (4 and 12 cmH2O) with a tidal volume of 8, 10 and 12 ml/kgIBW. The two groups were comparable for age and BMI (2.5 [1.0–5.5] vs 3.0 [1.7–7.2] years and 15.1 ± 2.4 vs 15.3 ± 3.0 kg/m2). The functional residual capacity in ARDS patients was significantly lower as compared to the control group (10.4 [9.1–14.3] vs 16.6 [11.7–24.6] ml/kg, p = 0.04). The ARDS patients had a significantly lower respiratory system and lung compliance as compared to control subjects (9.9 ± 5.0 vs 17.8 ± 6.5, 9.3 ± 4.9 vs 16.9 ± 4.1 at 4 cmH2O of PEEP and 11.7 ± 5.8 vs 23.7 ± 6.8, 10.0 ± 4.9 vs 23.4 ± 7.5 at 12 cmH2O of PEEP). The compliance of the chest wall was similar in both groups (76.7 ± 30.2 vs 94.4 ± 76.4 and 92.6 ± 65.3 vs 90.0 ± 61.7 at 4 and 12 cmH2O of PEEP). The lung stress and strain were significantly higher in ARDS patients as compared to control subjects and were poorly related to airway pressure and tidal volume normalized for body weight.

Conclusions

Airway pressures and tidal volume normalized to body weight are poor surrogates for lung stress and strain in mild pediatric ARDS.

Trial registration: Clinialtrials.gov NCT02036801. Registered 13 January 2014

Keywords

Acute respiratory distress syndromePEEPLung stressLung strainFunctional residual capacityVentilator-induced lung injuryTidal volume

Background

Mechanical ventilation is routinely applied for different reasons in up to 64 % of children admitted to pediatric intensive care units [1]. One of the most frequent applications is for the acute respiratory distress syndrome (ARDS) which has been defined more than 20 years ago and recently revised [2, 3]. ARDS has been reported to affect from 2.9 up to 12.8 patients per 100.000 children per year [4, 5] with an associated mortality ranging between 18 and 35 % [4–7]. Children with ARDS are frequently managed with a tidal volume, between 9 and 10 ml/kg of predicted body weight [4] and mean PEEP level between 6 and 10 cmH2O [6, 8]. Contrary to adult ARDS patients, in which several randomized clinical studies have shown that the application of a lung protective ventilation (low tidal volume and high PEEP levels) ameliorated the final outcome [9, 10], in children with ARDS only few clinical studies have suggested a benefit of this strategy [11–13]. In addition, there are conflicting reports about the relationship between size of tidal volume and the outcome [9, 11, 14, 15].

In sedated, paralyzed children with non-cardiogenic acute respiratory failure, the compliance of respiratory system and functional residual capacity were significantly lower than in healthy subjects [16–18]. The application of PEEP was able to increase the compliance of respiratory system and to normalize the functional residual capacity in the majority of the patients [17, 18]. However, no major studies in children with ARDS have investigated the role of different levels of PEEP and tidal volume on the partitioned respiratory mechanic (lung and chest wall), stress (i.e., the transpulmonary pressure at end inspiration) and strain (the change in volume to the functional residual capacity) [19, 20]. Like in adult ARDS patients, an estimate of how much respiratory system is impaired should be fundamental for optimizing the ventilatory strategy (i.e., to minimize the ventilation induced lung injury). The aim of this study was to evaluate in children with ARDS how the respiratory mechanics and stress/strain are affected compared with normal subjects.

Methods

Study population

The study was approved by the ethics committee of the Fondazione IRCCS “Ospedale Maggiore Policlinico Mangiagalli Regina Elena,” Milano. Before enrollment, written informed consent was obtained by the family for each patient (Clinical trials NCT02036801). Patients were enrolled from April 2009 to April 2014. The study population comprised two groups: first group—ten patients with ARDS [2, 3], and second group—ten control subjects after elective surgery or neurologic diseases without acute respiratory failure, cardiac disease and any signs of upper respiratory infections.

Study design

All patients were intubated with a cuffed endotracheal tube, sedated, paralyzed and kept in supine position. Anesthesia and paralysis were maintained with midazolam 2 mcg/kg/min, fentanyl 1 mcg/kg/h and cisatracurium 2 mcg/kg/min. All measurements were taken after inflating the endotracheal tube cuff to prevent leaks up to 40 cmH2O.

A computer-driven protocol of ventilator setting was used [19]. The sequence started with the measurement of functional residual capacity. After this measurement, the ventilator applied 60 consecutive breaths with a tidal volume of 8, 10 and 12 ml/kg of ideal body weight at 4 and 12 cmH2O of PEEP. For more details, see Additional file 1: Figure S1. In order to standardize the lung volume history, before the measurement of functional residual capacity and changes in PEEP, a recruitment maneuver obtained by increasing the tidal volume to reach 35 cmH2O starting from 5 cmH2O of PEEP with a respiratory rate of 10 bpm was performed

Measurements

The respiratory flow rate was measured with a heated pneumotachograph (Fleisch No. 2, Fleisch). Airway pressure was measured proximally to the endotracheal tube with a dedicated pressure transducer (MPX 2010 DP, Motorola). Esophageal pressure was measured with a radio-opaque esophageal balloon (length 40 cm, diameter 6 Fr) (CareFusion, Linda, USA) inflated with 0.2–0.3 ml of air connected to a pressure transducer. All traces were sampled at 100 Hz and processed on a dedicated data acquisition system (Colligo and Computo, www.elekton.it). To ensure the correct position of the catheter, the esophageal balloon was positioned in the stomach to check the presence of positive deflection. Then, it was retracted until it reached the lower third of the esophagus; in this position, an inspiratory occlusion was made to check for concordant changes in airway and esophageal pressure [19, 21].

The functional residual capacity and end-expiratory lung volume were measured using a simplified closed circuit helium dilution method by inflating the respiratory system with 0.5–1 l of a mixture of helium and oxygen [19]. The predicted functional residual capacity was estimated according to Sivan et al. [17].

During an inspiratory and expiratory pause, the airway and esophageal pressure were measured. Transpulmonary pressure was computed as the difference between airway and esophageal pressure.

The respiratory system, lung and chest wall compliance were computed according to the following formula [22]:

  • Respiratory system compliance (C, rs) (ml/cmH2O) = tidal volume/(airway pressure at end inspiration − airway pressure at PEEP)

  • Lung compliance (C, l) (ml/cmH2O) = tidal volume/(transpulmonary pressure at end inspiration − transpulmonary pressure at PEEP)

  • Chest wall compliance (C, cw) (ml/cmH2O) = tidal volume/(esophageal pressure at end inspiration − esophageal pressure at PEEP)

Stress and strain were computed as the delta transpulmonary pressure measured from end inspiration to atmospheric pressure and as the ratio between the inflation volume (tidal volume plus the volume due to PEEP) and functional residual capacity [19]. The specific lung elastance was computed as the ratio between the stress and strain.

Airway driving pressure was computed as airway pressure at end inspiration–airway pressure at PEEP

Body weight and height were measured the day of the study by a dedicated balance and by a tape.

Statistical analysis

Data are reported as mean ± SD or as median [IQ], unless otherwise specified, as appropriate. Statistical significance was defined as p < 0.05. Baseline and physiologic variables were compared by Student’s t test for variables that were normally distributed and by Mann–Whitney U test for variables that were not normally distributed and by Chi-square test for qualitative variables. Linear regression was used to model the relationship between variables and to describe linear segment of the volume/pressure curve. Three-way ANOVA was used to describe the effects of the presence of the disease, the level of PEEP and tidal volume. Bonferroni’s t test was employed to correct for multiple comparisons. Power least squares fitting was used to describe the shape of the volume/pressure curve shape. Analysis was performed using SigmaPlot software, version 12.0 (Systat, Chicago, IL).

Results

The baseline characteristics are reported in Table 1. A total of 20 subjects were enrolled (10 in each group). Age, height, weight and body mass index were similar in the two groups. Patients with ARDS had significantly lower oxygenation, higher airway plateau pressure and higher level of PEEP as compared to control subjects. The functional residual capacity in ARDS patients was significantly lower than predicted (162 ± 68 ml vs 344 ± 152 ml, p < 0.01) but was closer in the control group (282 ± 107 vs 382 ± 112 ml, p = 0.07). The functional residual capacity was related to the age of the patients in ARDS and in the control group (r 2 = 0.71, p < 0.05; r 2 = 0.49, p < 0.05) (see Additional file 1: Figures S2, S3).
Table 1

Baseline characteristics

Characteristic

ARDS patients (n = 10)

Control patients (n = 10)

p value

Age (years)

2.5 [1.0–5.5]

3.0 [1.7–7.2]

0.62

Male sex, no. of patients (%)

7 (70)

4 (40)

0.37

Height (cm)

99.5 ± 22.2

105.7 ± 14.7

0.47

Weight (kg)

12.7 [10.0–20.2]

15.0 [14.7–18.0]

0.16

Body mass index (kg/m2)

15.1 ± 2.4

15.3 ± 3.0

0.88

V T (ml)

120.0 [98.7–182.5]

145.0 [127.5–162.5]

0.43

V T/IBW (ml/kg)

9.1 [7.8–10.0]

9.7 [8.5–10.2]

0.54

Days of ventilation before study

2 [1–4]

0 [0–1]

0.04

ARDS classification, no (%)



 Mild

6 (60)



 Moderate

2 (20)



 Severe

2 (20)



Respiratory rate (bpm)

27 ± 7

22 ± 5

0.09

Minute ventilation (l/min)

3.4 ± 1.1

3.2 ± 0.8

0.64

Airway plateau pressure (cmH2O)

24.2 ± 4.0

15.1 ± 3.1

<0.001

PEEP (cmH2O)

8.4 ± 2.3

3.5 ± 1.8

<0.001

PaO2/FiO2 ratio

206 ± 86

389 ± 73

<0.001

PaCo2 (mmHg)

44.0 [37.2–52.5]

40.5 [38.0–45.5]

0.40

FRC (ml)

162.2 ± 67.6

288.1 ± 107.3

0.006

FRC (ml/kg)

10.4 [9.1–14.3]

16.6 [11.7–24.6]

0.04

Admission diagnosis, no (%)



0.004

 Sepsis

2 (20)

0



 Infection

4 (40)

0



 ARDS ndd

3 (30)

0



 Post-surgery

0

4 (40)



 Neurological diseases

0

4 (40)



 Other

1 (10)

2 (20)



Data presented as mean values (SD) or as median [IQ] or as number of subjects (%) as appropriate

V T tidal volume, IBW ideal body weight, ARDS acute respiratory distress syndrome, PEEP positive end-expiratory pressure, PaO 2 /FiO 2 ratio of partial pressure of arterial oxygen and fraction of inspired oxygen, PaCO 2 partial pressure of arterial carbon dioxide, FRC functional residual capacity

Partitioned respiratory mechanics and end-expiratory lung volume: effect of PEEP and tidal volume

In both groups, the airway plateau pressure significantly increased by increasing the tidal volume and the PEEP (Table 2). ARDS patients had a significantly lower compliance of the respiratory system and compliance of the lung than controls; both of them were not affected by the PEEP or tidal volume. Compliance of the chest wall was similar in both groups and did not change with PEEP or tidal volume. In Fig. 1 are shown the pressure volume curves of respiratory system, lung and chest wall.
Table 2

Respiratory mechanics



PEEP (cmH2O)

p value

4

12

Pathology

PEEP

V T

V T

8

10

12

8

10

12

Airway plateau pressure (cmH2O)

<0.001

<0.001

<0.001

 ARDS patients

18.6 ± 3.6

21.7 ± 4.3

23.4 ± 3.3

26.5 ± 2.7

29.2 ± 2.7

31.9 ± 2.6



 Control patients

13.3 ± 2.1

14.7 ± 2.7

16.0 ± 3.1

21.2 ± 2.3

22.7 ± 2.6

24.3 ± 3.3



Respiratory system compliance (ml/cmH2O)

<0.001

0.36

0.40

 ARDS patients

9.6 ± 4.6

9.9 ± 5.6

10.2 ± 4.4

9.0 ± 4.0

9.4 ± 4.2

9.6 ± 4.2



 Control patients

16.5 ± 3.4

17.9 ± 4.8

19.0 ± 6.9

16.0 ± 3.6

17.1 ± 4.3

17.6 ± 4.5



Lung compliance (ml/cmH2O)

<0.001

0.56

0.43

 ARDS patients

11.5 ± 6.0

11.6 ± 5.5

12.0 ± 5.5

10.2 ± 4.5

10.9 ± 5.1

11.3 ± 4.9



 Control patients

21.8 ± 4.6

23.8 ± 6.2

25.5 ± 8.0

22.4 ± 6.0

23.4 ± 8.3

24.2 ± 7.9



Chest wall compliance (ml/cmH2O)

0.49

0.60

0.63

 ARDS patients

76.3 ± 29.6

79.2 ± 35.0

74.5 ± 26.3

122.6 ± 113.0

81.4 ± 30.3

73.8 ± 52.1



 Control patients

99.5 ± 99.1

85.6 ± 55.8

98.2 ± 69.1

85.5 ± 61.6

90.1 ± 55.9

94.4 ± 69.1



End-expiratory lung volume (ml)

<0.001

<0.001

0.97

 ARDS patients

211.0 ± 116.1

216.5 ± 115.2

216.7 ± 117.7

346.2 ± 177.6

361.2 ± 185.6

374.2 ± 183.9



 Control patients

386.2 ± 156.6

384.7 ± 151.7

386.9 ± 156.4

619.2 ± 230.2

623.1 ± 219.9

622.1 ± 207.2



ARDS acute respiratory distress syndrome

Values are mean ± SD. Two statistical analyses are reported: a three-way analysis of variance to test the effects of the presence of the disease, the level of PEEP and the level of VT/IBW and a post hoc Bonferroni’s test analysis for the comparison between subgroups

Figure 1
Fig. 1

Pressure volume curve of respiratory system, lung and chest wall in control (left panel) and ARDS patients (right panel)

In both groups, the compliance of respiratory system and that of the lung were significantly related to end-expiratory lung volume (r 2 = 0.49, p < 0.01; r 2 = 0.44, p < 0.01) and (r 2 = 0.43, p < 0.01; r 2 = 0.34, p < 0.01, respectively) (see Additional file 1: Figures S4, S5, S6, S7). Compliance of respiratory system was significantly related to the age of the patients in ARDS group (r 2 = 0.64, p < 0.005) but only showed a tendency toward significance in the control group (r 2 = 0.35, p = 0.007) (see Additional file 1: Figures S8, S9).

EELV was significantly lower in ARDS patients and increased in both groups after increasing the level of PEEP.

Stress and strain

The lung stress and strain were significantly higher in ARDS patients as compared to control subjects and increased after increasing the level of PEEP and tidal volume (Table 3). ARDS patients presented greater changes in transpulmonary pressure and strain as compared to control subjects (Fig. 2). However, there was a large data overlap in the two groups. For a similar airway plateau pressure, there was a huge difference in transpulmonary pressures (Fig. 3).
Table 3

Lung stress, strain and specific lung elastance



PEEP (cmH2O)

p value

4



12



Pathology

PEEP

V T

VT

8

10

12

8

10

12

Lung stress (cmH2O)

<0.001

<0.001

<0.001

 ARDS patients

16.0 ± 4.0

17.7 ± 3.8

19.9 ± 3.7

22.9 ± 2.8

24.6 ± 3.0

27.2 ± 2.8



 Control patients

9.9 ± 3.1

10.9 ± 3.0

12.2 ± 3.2

15.3 ± 4.4

16.8 ± 4.6

18.4 ± 5.5



Lung strain

0.013

<0.001

0.030

 ARDS patients

1.13 ± 0.39

1.32 ± 0.43

1.53 ± 0.46

1.94 ± 0.60

2.19 ± 0.70

2.39 ± 0.86



 Control patients

0.94 ± 0.30

1.08 ± 0.36

1.23 ± 0.45

1.80 ± 0.56

1.97 ± 0.67

2.13 ± 0.74



Specific lung elastance (cmH2O)

<0.001

0.024

0.586

 ARDS patients

16.22 ± 7.8

14.21 ± 6.2

13.81 ± 4.8

13.23 ± 4.9

12.41 ± 4.7

12.36 ± 4.9



 Control patients

11.24 ± 3.3

10.62 ± 2.3

10.46 ± 2.4

8.98 ± 2.2

9.04 ± 1.8

9.21 ± 1.8



ARDS acute respiratory distress syndrome

Values are mean ± SD. Two statistical analyses are reported: a three-way analysis of variance to test the effects of the presence of the disease, the level of PEEP and the level of VT/IBW and a post hoc Bonferroni’s test analysis for the comparison between subgroups

Figure 2
Fig. 2

Lung stress (left panel) and strain (right panel) at 8 and 12 ml/kg of ideal body weight in control and ARDS patients. Individual values are reported for ARDS (solid circle) and control group (open circle), and black solid lines represent mean values of each group

Figure 3
Fig. 3

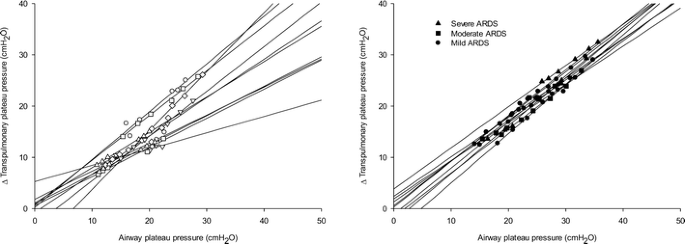

Relationship between the changes in transpulmonary plateau pressure and airway plateau pressure in control (left panel) and ARDS patients (right panel). In both groups, the solid lines represent the relationship observed in each individual subject in the six experimental conditions (three different tidal volumes 8, 10 and 12 ml/kg of ideal body weight at two different levels of PEEP 4 and 8 cmH2O)

The ratio between the lung stress and strain (i.e., the specific lung elastance) was significantly higher in ARDS patients (Table 3).

Changes in lung stress as function of changes in airway driving pressure during the PEEP trial in the individual patients are reported in Figure S10

Discussion

The primary findings of this study are that (1) children with ARDS presented a significantly lower compliance of the respiratory system and of the lung compared with control subjects; (2) chest wall compliance was similar in the two groups; (3) compliance of the lung and chest wall was not affected by the changes in PEEP or tidal volume; (4) stress and strain were significantly higher in ARDS compared with control subjects; and (5) the specific lung elastance decreased with PEEP

Up to 30 % of all children admitted in pediatric intensive care are intubated and mechanically ventilated, mainly for respiratory and cardiovascular disorders [5, 6]. The optimal ventilator management of ARDS is still unresolved because the “adult” ventilatory strategies have rarely been tested in randomized pediatric setting [11–13] and conclusive link between use of large tidal volume and mortality has not been demonstrated [1, 23].

Limited data reported the alteration of respiratory mechanics in children with ARDS [16–18, 24, 25]. Thus, identifying these changes in respiratory mechanics in children with ARDS could provide useful information for the possible detrimental effects of mechanical ventilation [26, 27].

Compliance of respiratory system

Due to the increase in number and alveoli size during the adolescent, the compliance of respiratory system and of the lung significantly increased with increasing age [28–34]. On the contrary due to the rapid ossification and changes in rib cage configuration, the chest wall compliance decreased within the first years [24]. However, the chest wall is nearly three times more elastic compared with normal lung [24], and thus, the chest wall contributes only 30–35 % to the total respiratory system [35].

In order to correctly compare the data of respiratory mechanics reported by the different studies, it is essential to consider the patients’ age, the technique applied (static or dynamic, inspiratory or expiratory pressure volume curve), the presence of sedation or anesthesia, the size of tidal volume and the level of applied PEEP [32, 36]. In our study evaluating the respiratory mechanics during inspiration in static conditions, the control group (i.e., healthy children) had an average compliance of the respiratory system of 17.4 ± 4.3 (ranging between 14.7 and 20.6 ml/cmH2O). Similar results were reported in previous studies, in a group of children sedated and mechanically ventilated prior the surgery, in which the compliance of the respiratory system ranged between 20 and 30 ml/cmH2O [28, 35]. Applying an automatic computation with the single breath occlusion technique available in modern ventilators, it has been reported an average compliance of respiratory system of 22.8 ± 12 ml/cmH2O [37]. In a group of younger patients with a mean age from 1 to 25 months, the compliance of respiratory system was significantly lower compared with published data with an average value of 4 ml/cmH2O [36].

The presence of lung disease has been reported to significantly reduce the functional residual capacity compared with healthy subjects [16, 38]. The increase in functional residual capacity due to the application of PEEP is generated by the recruitment of new lung unit and by the over-distension of already open lung unit, and consequently, the final effect will depend on the balance of these two. Numa et al. [16] found in restrictive patients of 2.0 years old a mean functional residual capacity of 14.1 ± 1.9 ml/kg compared with 26.4 ± 1.8 ml/kg in healthy subjects. In the present study, children with ARDS had a significantly lower functional residual capacity compared with healthy subjects (10.4 [9.1–14.3] ml/kg compared with 16.6 [11.7–24.6] ml/kg). As the compliance of respiratory system is partially related to the amount of lung aeration (i.e., end-expiratory lung volume), compliance was significantly lower in ARDS compared with the healthy subjects. However, compliance did not change with the amount of tidal volume and/or the level of PEEP, suggesting a mixed effect of possible simultaneous lung recruitment and over-distension. Fletcher et al. [36] found a significant increase in the compliance of respiratory system when tidal volume was increased from 3.3 to 9.3 ml/kg only in anesthetized children. In children with non-cardiogenic pulmonary edema, the increase in PEEP from 0 to 18 cmH2O improved the compliance of respiratory system in only 60 % of the patients [18].

Lung and chest wall compliance

To better understand how the respiratory mechanics are affected, we have considered the lung and chest wall compliance by computing the transpulmonary pressure. The transpulmonary pressure is the distending force of the lung, and it was computed as the difference in the changes in airway pressure and esophageal pressure. Esophageal pressure was recorded with an esophageal balloon, which has been shown to accurately reflect the pleural pressure in previous studies [29, 30, 32, 33]. Comparing similar anthropometric features with our study, Nisbet et al. [28] found that lung compliance ranged from 30 to 40 ml/cmH2O, slightly higher compared with the present data. Similarly, Ingimarsson et al. [32] reported that in muscle paralyzed healthy children the compliance of lung averaged 3.3 ± 0.7 ml/cmH2O/kg. In the present study, the lung compliance was significantly higher in healthy children compared with ARDS 1.5 ± 0.5 ml/cmH2O/kg vs 0.7 ± 0.1 ml/cmH2O/kg and did not change with PEEP or tidal volume.

In healthy children, the chest wall compliance is usually higher compared with lung compliance promoting the tendency for lung to collapse at low lung volume, being the rib cage relatively ineffective for opposing the inward recoil of the lungs [39, 40]. A significantly higher chest wall compliance was found in patients with neuromuscular disorders predisposing these subjects to development of atelectasis and hypoxemia. Nisbet et al. [28] reported in children during general anesthesia a chest wall compliance ranging from 70 to 100 ml/cmH2O. Similarly, data were found in the present study without any difference between control and ARDS subjects. The lack of difference in chest wall compliance between ARDS and control group was mainly due to the presence of only pulmonary ARDS which has been mainly associated with a reduction only in the lung compliance [19].

Stress and strain

Similarly, to adult patients with and without ARDS the changes in airway pressure were poorly related to changes in transpulmonary pressure which is the distending force of the lung (i.e., the stress) [19]. Thus assuming a “safe” limit of 30 cmH2O of airway pressure the resulting transpulmonary pressure can vary from 27.1 to 23.8 cmH2O passing from a safe zone to a probably unsafe zone. Also the tidal volume normalized for the predicted body weight in both groups due to the unpredictable reduction in functional residual capacity produced significant difference in the lung “strain”. Compared with lung compliance which did not change with PEEP, the stress and strain significantly increased, suggesting that they could be used as better indicator for possible ventilator-induced lung injury when setting mechanical ventilation. On the contrary, the lung stress, although related to airway driving pressure, could not be predicted by the driving pressure. In fact, for an airway driving pressure between 14 and 16 cmH2O the lung stress ranged between 13 and 25 cmH2O.

In adult patients with or without ARDS, similar changes in transpulmonary pressure cause similar changes in lung gas volume, suggesting similar specific lung elastance [19]. On the contrary, in children with ARDS the specific lung elastance was significantly higher compared with control group. This suggests not only that in children with ARDS there is a decrease in lung gas volume but that the ventilated tissue presents different structural characteristics. Inflammations, surfactant depletion/alterations and edema may explain these different tissue behaviors compared with adults in which specific lung elastance was similar between ARDS and control groups.

Limitation

Possible limitations of this study are: (1) the relatively few number of enrolled patients; (2) the absence of any patient with an extrapulmonary ARDS; and (3) the strain computed without taking into account the recruitment during inspiration because it was assumed that the similar amount of pulmonary units is open at end inspiration and expiration.

Conclusions

In conclusion, in children with ARDS the lung stress cannot be predicted from the airway pressure and the tidal volume normalized for the body weight can produce different amounts of lung strain. Thus, an ideal respiratory monitoring system in children with mild-to-moderate ARDS should provide the measurement of stress and strain.

Abbreviations

ARDS:

acute respiratory distress syndrome

PEEP:

positive end-expiratory pressure

EELV:

end-expiratory lung volume

Declarations

Authors’ contributions

DC designed the work and collected, analyzed and interpreted data. GC designed the work and collected, analyzed and interpreted data. EC helped in interpretation of data. AC and MB collected and analyzed data. FC collected data. All authors drafted and revised the work. All authors read and approved the final manuscript.

Acknowledgement

Not applicable.

Conflict of interest

The authors declare that they have no competing interests. All phases of this study were supported by institutional funding.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Dipartimento di Anestesia, Rianimazione (Intensiva e Subintensiva) e Terapia del Dolore, Fondazione IRCCS Ca’ Granda - Ospedale Maggiore Policlinico, Milan, Italy
(2)
Dipartimento di Fisiopatologia Medico-Chirurgica e dei Trapianti, Università degli Studi di Milano, Milan, Italy
(3)
Terapia Intensiva Pediatrica, Dipartimento di Anestesia e Rianimazione, Fondazione IRCCS Ca’ Granda - Ospedale Maggiore Policlinico, Milan, Italy

References

  1. Pediatric Acute Lung Injury Consensus Conference Group. Pediatric acute respiratory distress syndrome: consensus recommendations from the pediatric acute lung injury consensus conference. Pediatr Crit Care Med J Soc Crit Care Med World Fed Pediatr Intensive Crit Care Soc. 2015;16:428–39.Google Scholar
  2. De Luca D, Piastra M, Chidini G, Tissieres P, Calderini E, Essouri S, Medina Villanueva A, Vivanco Allende A, Pons-Odena M, Perez-Baena L, Hermon M, Tridente A, Conti G, Antonelli M, Kneyber M. Respiratory Section of the European Society for Pediatric Neonatal Intensive Care (ESPNIC): The use of the Berlin definition for acute respiratory distress syndrome during infancy and early childhood: multicenter evaluation and expert consensus. Intensive Care Med. 2013;39:2083–91.View ArticlePubMedGoogle Scholar
  3. ARDS Definition Task Force, Ranieri VM, Rubenfeld GD, Thompson BT, Ferguson ND, Caldwell E, Fan E, Camporota L, Slutsky AS. Acute respiratory distress syndrome: the Berlin Definition. JAMA. 2012;307:2526–33.Google Scholar
  4. Zimmerman JJ, Akhtar SR, Caldwell E, Rubenfeld GD. Incidence and outcomes of pediatric acute lung injury. Pediatrics. 2009;124:87–95.View ArticlePubMedGoogle Scholar
  5. Erickson S, Schibler A, Numa A, Nuthall G, Yung M, Pascoe E, Wilkins B, Paediatric Study Group, Australian and New Zealand Intensive Care Society. Acute lung injury in pediatric intensive care in Australia and New Zealand: a prospective, multicenter, observational study. Pediatr Crit Care Med J Soc Crit Care Med World Fed Pediatr Intensive Crit Care Soc. 2007;8:317–23.Google Scholar
  6. Khemani RG, Markovitz BP, Curley MAQ. Characteristics of children intubated and mechanically ventilated in 16 PICUs. Chest. 2009;136:765–71.PubMed CentralView ArticlePubMedGoogle Scholar
  7. Yu W-L, Lu Z-J, Wang Y, Shi L-P, Kuang F-W, Qian S-Y, Zeng Q-Y, Xie M-H, Zhang G-Y, Zhuang D-Y, Fan X-M, Sun B. Collaborative Study Group of Pediatric Respiratory Failure: the epidemiology of acute respiratory distress syndrome in pediatric intensive care units in China. Intensive Care Med. 2009;35:136–43.View ArticlePubMedGoogle Scholar
  8. López-Fernández Y, Azagra AM, de la Oliva P, Modesto V, Sánchez JI, Parrilla J, Arroyo MJ, Reyes SB, Pons-Ódena M, López-Herce J, Fernández RL, Kacmarek RM, Villar J. Pediatric Acute Lung Injury Epidemiology and Natural History (PED-ALIEN) Network: pediatric acute lung injury epidemiology and natural history study: incidence and outcome of the acute respiratory distress syndrome in children. Crit Care Med. 2012;40:3238–45.View ArticlePubMedGoogle Scholar
  9. Khemani RG, Conti D, Alonzo TA, Bart RD, Newth CJL. Effect of tidal volume in children with acute hypoxemic respiratory failure. Intensive Care Med. 2009;35:1428–37.View ArticlePubMedGoogle Scholar
  10. Briel M, Meade M, Mercat A, Brower RG, Talmor D, Walter SD, Slutsky AS, Pullenayegum E, Zhou Q, Cook D, Brochard L, Richard JC, Lamontagne F, Bhatnagar N, Stewart TE, Guyatt G. Higher vs lower positive end-expiratory pressure in patients with acute lung injury and acute respiratory distress syndrome: systematic review and meta-analysis. JAMA. 2010;303:865–73.View ArticlePubMedGoogle Scholar
  11. Flori HR, Glidden DV, Rutherford GW, Matthay MA. Pediatric acute lung injury: prospective evaluation of risk factors associated with mortality. Am J Respir Crit Care Med. 2005;171:995–1001.View ArticlePubMedGoogle Scholar
  12. Bojko T, Notterman DA, Greenwald BM, De Bruin WJ, Magid MS, Godwin T. Acute hypoxemic respiratory failure in children following bone marrow transplantation: an outcome and pathologic study. Crit Care Med. 1995;23:755–9.View ArticlePubMedGoogle Scholar
  13. Dahlem P, van Aalderen WMC, Hamaker ME, Dijkgraaf MGW, Bos AP. Incidence and short-term outcome of acute lung injury in mechanically ventilated children. Eur Respir J. 2003;22:980–5.View ArticlePubMedGoogle Scholar
  14. Randolph AG. Management of acute lung injury and acute respiratory distress syndrome in children. Crit Care Med. 2009;37:2448–54.View ArticlePubMedGoogle Scholar
  15. de Jager P, Burgerhof JGM, van Heerde M, Albers MJIJ, Markhorst DG, Kneyber MCJ. Tidal volume and mortality in mechanically ventilated children: a systematic review and meta-analysis of observational studies*. Crit Care Med. 2014;42:2461–72.View ArticlePubMedGoogle Scholar
  16. Numa AH, Hammer J, Newth CJ. Effect of prone and supine positions on functional residual capacity, oxygenation, and respiratory mechanics in ventilated infants and children. Am J Respir Crit Care Med. 1997;156(4 Pt 1):1185–9.View ArticlePubMedGoogle Scholar
  17. Sivan Y, Deakers TW, Newth CJ. Functional residual capacity in ventilated infants and children. Pediatr Res. 1990;28:451–4.View ArticlePubMedGoogle Scholar
  18. Sivan Y, Deakers TW, Newth CJ. Effect of positive end-expiratory pressure on respiratory compliance in children with acute respiratory failure. Pediatr Pulmonol. 1991;11:103–7.View ArticlePubMedGoogle Scholar
  19. Chiumello D, Carlesso E, Cadringher P, Caironi P, Valenza F, Polli F, Tallarini F, Cozzi P, Cressoni M, Colombo A, Marini JJ, Gattinoni L. Lung stress and strain during mechanical ventilation for acute respiratory distress syndrome. Am J Respir Crit Care Med. 2008;178:346–55.View ArticlePubMedGoogle Scholar
  20. Protti A, Cressoni M, Santini A, Langer T, Mietto C, Febres D, Chierichetti M, Coppola S, Conte G, Gatti S, Leopardi O, Masson S, Lombardi L, Lazzerini M, Rampoldi E, Cadringher P, Gattinoni L. Lung stress and strain during mechanical ventilation: any safe threshold? Am J Respir Crit Care Med. 2011;183:1354–62.View ArticlePubMedGoogle Scholar
  21. Chiumello D, Cressoni M, Colombo A, Babini G, Brioni M, Crimella F, Lundin S, Stenqvist O, Gattinoni L. The assessment of transpulmonary pressure in mechanically ventilated ARDS patients. Intensive Care Med. 2014;40(11):1670–8View ArticlePubMedGoogle Scholar
  22. Pelosi P, Cereda M, Foti G, Giacomini M, Pesenti A. Alterations of lung and chest wall mechanics in patients with acute lung injury: effects of positive end-expiratory pressure. Am J Respir Crit Care Med. 1995;152:531–7.View ArticlePubMedGoogle Scholar
  23. Kneyber MCJ, Zhang H, Slutsky AS. Ventilator-induced lung injury. Similarity and differences between children and adults. Am J Respir Crit Care Med. 2014;190:258–65.PubMedGoogle Scholar
  24. Papastamelos C, Panitch HB, England SE, Allen JL. Developmental changes in chest wall compliance in infancy and early childhood. J Appl Physiol Bethesda Md. 1985;1995(78):179–84.Google Scholar
  25. Papastamelos C, Panitch HB, Allen JL. Chest wall compliance in infants and children with neuromuscular disease. Am J Respir Crit Care Med. 1996;154(4 Pt 1):1045–8.View ArticlePubMedGoogle Scholar
  26. Kornecki A, Tsuchida S, Ondiveeran HK, Engelberts D, Frndova H, Tanswell AK, Post M, McKerlie C, Belik J, Fox-Robichaud A, Kavanagh BP. Lung development and susceptibility to ventilator-induced lung injury. Am J Respir Crit Care Med. 2005;171:743–52.View ArticlePubMedGoogle Scholar
  27. Caironi P, Langer T, Carlesso E, Protti A, Gattinoni L. Time to generate ventilator-induced lung injury among mammals with healthy lungs: a unifying hypothesis. Intensive Care Med. 2011;37:1913–20.View ArticlePubMedGoogle Scholar
  28. Nisbet HI, Levison H, Pelton DA. Static thoracic compliance in normal children under general anaesthesia. Acta Anaesthesiol Scand. 1971;15:179–91.View ArticlePubMedGoogle Scholar
  29. Zapletal A, Paul T, Samanek M. Pulmonary elasticity in children and adolescents. J Appl Physiol. 1976;40:953–61.PubMedGoogle Scholar
  30. Baran D, Yernault JC, Paiva M, Englert M. Static mechanical lung properties in healthy children. Scand J Respir Dis. 1976;57:139–47.PubMedGoogle Scholar
  31. Tepper RS, Williams T, Kisling J, Castile R. Static compliance of the respiratory system in healthy infants. Am J Respir Crit Care Med. 2001;163:91–4.View ArticlePubMedGoogle Scholar
  32. Ingimarsson J, Thorsteinsson A, Larsson A, Werner O. Lung and chest wall mechanics in anesthetized children. Influence of body position. Am J Respir Crit Care Med. 2000;162(2 Pt 1):412–7.View ArticlePubMedGoogle Scholar
  33. Gerhardt T, Hehre D, Feller R, Reifenberg L, Bancalari E. Pulmonary mechanics in normal infants and young children during first 5 years of life. Pediatr Pulmonol. 1987;3:309–16.View ArticlePubMedGoogle Scholar
  34. Thurlbeck WM. Postnatal human lung growth. Thorax. 1982;37:564–71.PubMed CentralView ArticlePubMedGoogle Scholar
  35. Sharp JT, Druz WS, Balagot RC, Bandelin VR, Danon J. Total respiratory compliance in infants and children. J Appl Physiol. 1970;29:775–9.PubMedGoogle Scholar
  36. Fletcher ME, Stocks J, Ridley S, Braude N, Yates AP, Hatch DJ. Total respiratory compliance during anaesthesia in infants and young children. Br J Anaesth. 1989;63:266–75.View ArticlePubMedGoogle Scholar
  37. Harikumar G, Greenough A, Rafferty GF. Ventilator assessment of respiratory mechanics in paediatric intensive care. Eur J Pediatr. 2008;167:287–91.PubMed CentralView ArticlePubMedGoogle Scholar
  38. von Ungern-Sternberg BS, Hammer J, Schibler A, Frei FJ, Erb TO. Decrease of functional residual capacity and ventilation homogeneity after neuromuscular blockade in anesthetized young infants and preschool children. Anesthesiology. 2006;105:670–5.View ArticleGoogle Scholar
  39. Colin AA, Wohl ME, Mead J, Ratjen FA, Glass G, Stark AR. Transition from dynamically maintained to relaxed end-expiratory volume in human infants. J Appl Physiol Bethesda Md. 1985;1989(67):2107–11.Google Scholar
  40. Fisher JT, Mortola JP, Smith JB, Fox GS, Weeks S. Respiration in newborns: development of the control of breathing. Am Rev Respir Dis. 1982;125:650–7.PubMedGoogle Scholar

Copyright

© Chiumello et al. 2016

Advertisement
